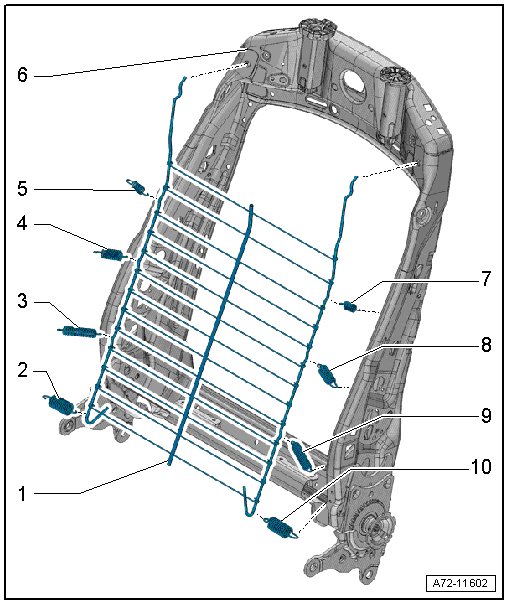

Spring Mat Assembly Overview

Spring Mat Assembly Overview






1 Spring mat

• Removing and Installing, refer to => [ Spring Mat ] Spring Mat

• Can be removed and installed with and without the pull-springs

2 Bottom spring

• Not available separately

3 Center spring

• Not available separately

4 Center spring

• Not available separately

5 Upper pull-spring

• Not available separately

6 Backrest frame

7 Upper pull-spring

• Not available separately

8 Center spring

• Not available separately

9 Center spring

• Not available separately

10 Bottom spring

• Not available separately
