Seat Heating and Backrest Heating Assembly Overview, Vehicles With Seat Ventilation

Seat Heating and Backrest Heating Assembly Overview, Vehicles with Seat Ventilation

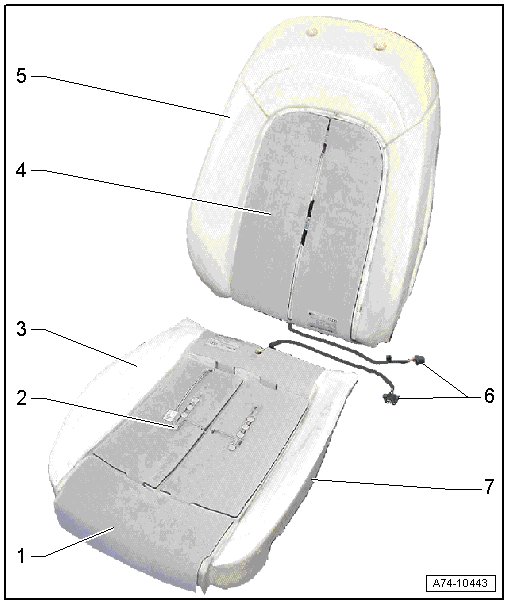

1 Heated driver seat (Z6)

• Front passenger side: front passenger seat heating element (Z8)

• Removing and Installing, refer to => [ Seat Heating Elements Z6/Z8, Vehicles with Seat Ventilation ] Seat Heating Elements Z6/Z8, Vehicles With Seat Ventilation

• For the correct allocation, refer to Parts Catalog

2 Front passenger seat occupied sensor (G128)

• Vehicles version front passenger side only

• Removing and Installing, refer to => [ Front Passenger Seat Occupant Sensor G128 ] Front Passenger Seat Occupant Sensor G128

3 Seat bolster heating

• For the correct allocation, refer to Parts Catalog

4 heated driver seat backrest (Z7)

• Front passenger side: front passenger backrest heating element (Z9)

• Removing and Installing, refer to => [ Backrest Heating Elements Z7/Z9, Vehicles with Seat Ventilation ] Backrest Heating Elements Z7/Z9, Vehicles With Seat Ventilation

• For the correct allocation, refer to Parts Catalog

5 Backrest padding

• For the correct allocation, refer to Parts Catalog

6 Electric wire

7 Seat cushion

• For the correct allocation, refer to Parts Catalog
