Wind Deflector

Wind Deflector

Removal

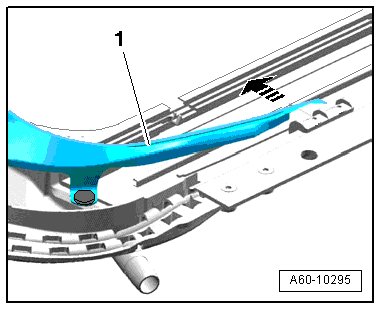

- Open sunroof completely.

- Push the front wind deflector down and remove the wind deflector arms from the bracket toward the center of the vehicle.

- Remove the wind deflector - 1 - toward the rear and out of the sunroof opening.






- Install in reverse sequence.

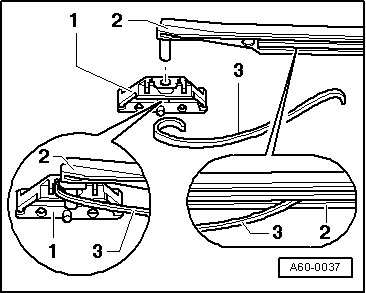

Wind Deflector Spring

- Install the spring - 3 - into the wind deflector mount - 1 -.






- Install the spring into the outer groove in the wind deflector - 2 -.
