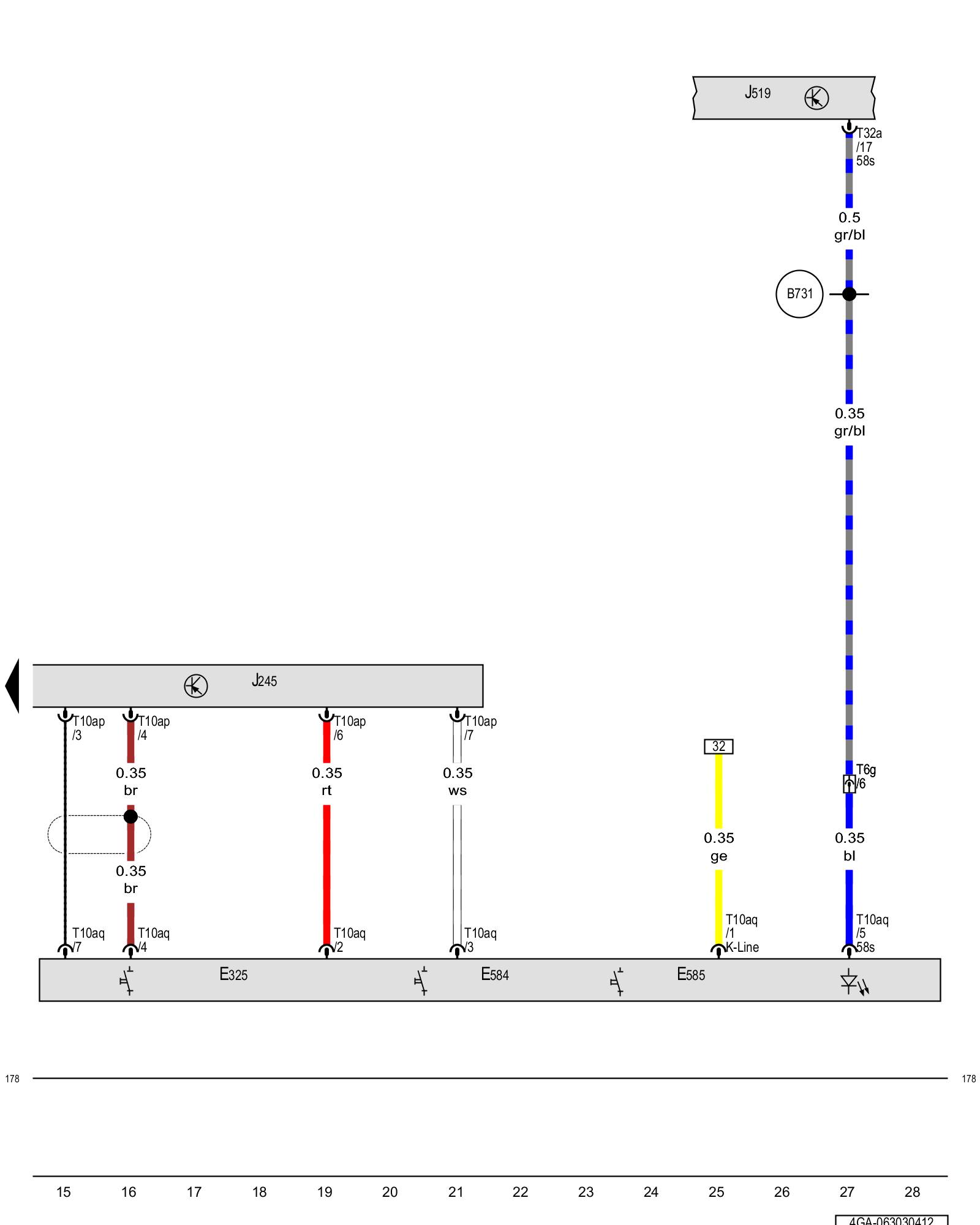

Diagram 63/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Sunroof button, Roof shade button 1, Power sunroof control module, Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E325 - Sunroof button

E584 - Roof shade button 1

E585 - Roof shade button 2

J245 - Power sunroof control module Locations

J519 - Vehicle electrical system control module Locations

T6g - 6-pin connector, under the roof trim

T10ap - 10-pin connector

T10aq - 10-pin connector

T32a - 32-pin connector Vehicle Electrical System Control Module -J519-

(178) - Ground connection (in sunroof wiring harness)

(B731) - Connection 1 (58s) (in main wiring harness)
