Trunk / Liftgate Closer Module: Locations
Overview of Control Modules

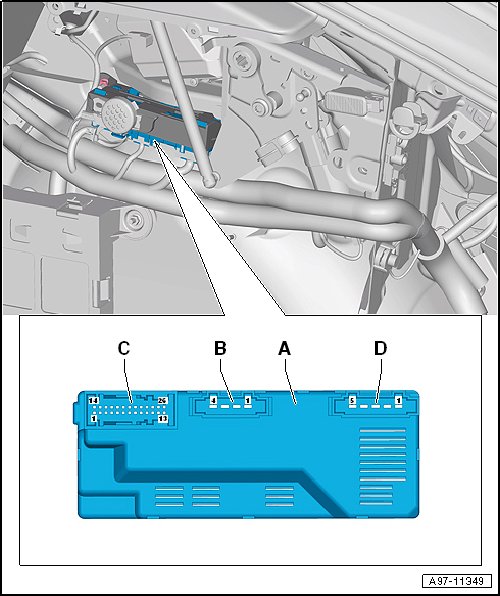

Rear Lid Control Module -J605-
Component Location:
In right luggage compartment, on wheel housing.
A - Rear Lid Control Module -J605-
B - 4-Pin Connector -T4bx- , black
C - 26-Pin Connector -T26b- , black
D - 5-Pin Connector -T5ae- , black
