Power Seat Control Module: Locations







Overview of Control Modules

Seat Heating Control Module -J882-

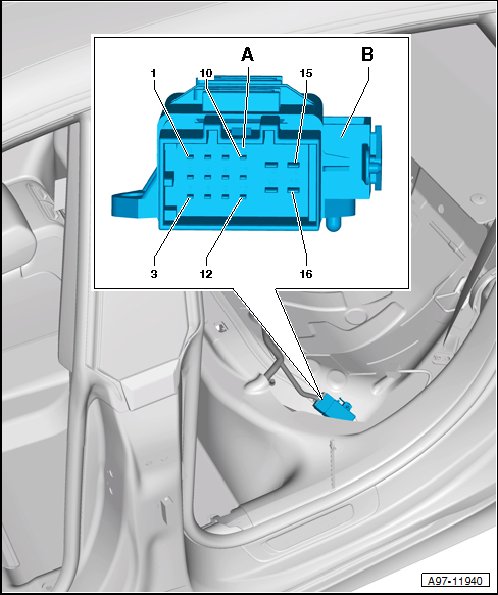

Component Location:
Below rear seat, left.





A - 16-Pin Connector -T16d- , black

B - Seat Heating Control Module -J882-
