Fuel Filler Door Unlock Motor V155

Fuel Filler Door Unlock Motor V155

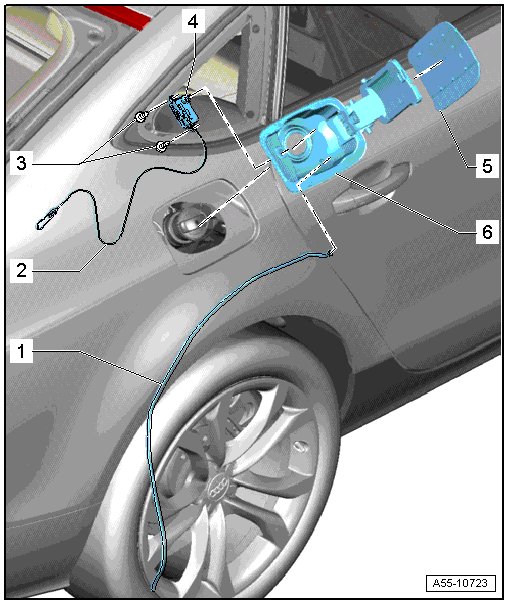

1 Drain hose

2 Cable for emergency release

3 Bolt

• 1,7 Nm

4 Fuel filler door unlock motor (V 155)

• Removal:

- Fuel filler door removed, refer to => [ Replace Fuel Filler Door ] Fuel Filler Door Overview

- Pull the comfort system central control module (J393) into the luggage compartment and and pull it forward.

- Remove the fuel tank lid unlock motor (V 155) forward off the body flange and disconnect the electrical connector.

• Installing:

- Slide the fuel tank lid unlock motor (V 155) onto the flange and slide the emergency release into the luggage compartment.

5 Fuel filler door cover

6 Fuel filler door

• Removal:

- Open the door and remove the bolt.

- Pull the bolted side of the door out of the side panel slightly.

- Completely remove the door from the side panel diagonally toward the rear.

• Installing:

- Guide cable through opening in fuel filler door cup.

- Insert fuel filler door diagonally until catches on protruding flange engage in side panel.

- Bolt the door and the door release motor together using the bolt - 4 -.

Fuel Filler Door Emergency Release

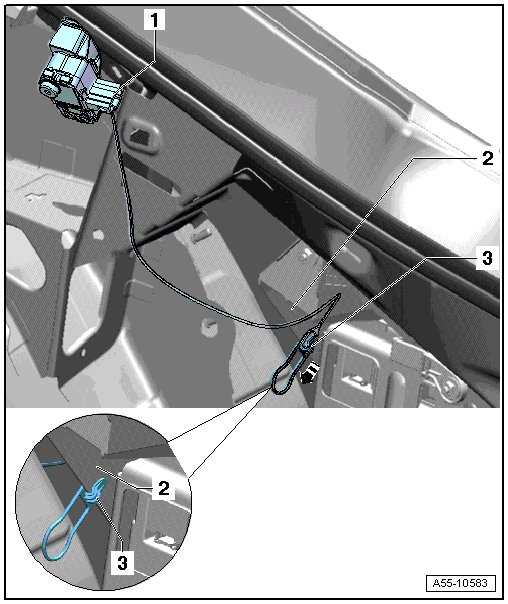

1 Fuel filler door unlock motor (V 155)

• With fuel filler door, removing and installing

2 Side panel

3 Cable for emergency release

• Insert the fuel tank lid unlock motor (V 155) with the cable over the tank opening as shown.

• Pull the cable back into the vehicle interior and connect it with the tab on the flange - 2 - on the side panel.
