B-Pillar Trim Assembly Overview

B-Pillar Trim Assembly Overview

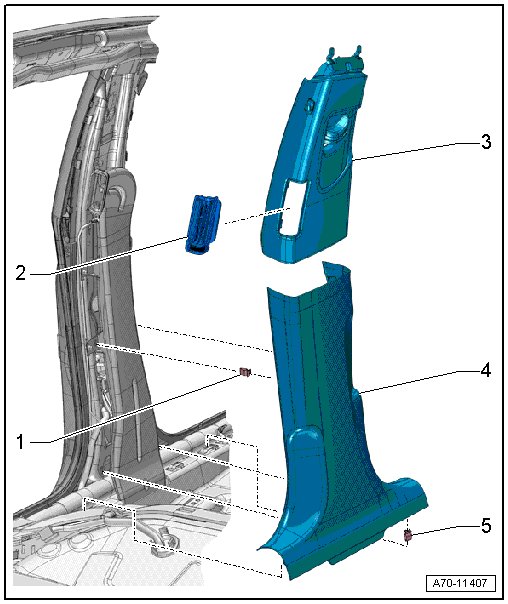

1 Clips

• Quantity: 4

• Install in the trim

• Remove clips left in the mounting points of the body and use for installation in the trim

• Replace damaged or deformed clips

2 Vent

• If equipped

• Removing and Installing, refer to => [ B-pillar Vent ] B-Pillar Vent

• Connect electrical harness connector, first insert lower vent in the trim and press on it until it engages audibly

3 Upper B-pillar trim

• Removing and Installing, refer to => [ Upper B-Pillar Trim ] Upper B-Pillar Trim

4 Lower B-pillar trim

• Removing and Installing, refer to => [ Lower B-Pillar Trim ] Lower B-Pillar Trim

5 Clips

• Quantity: 2

• Install in the trim

• Remove clips left in the mounting points of the body and use for installation in the trim

• Replace damaged or deformed clips
