Front Center Armrest

Storage Compartment In Center Armrest

Special tools, testers and auxiliary items required

• Wedges (T10383)

Removing

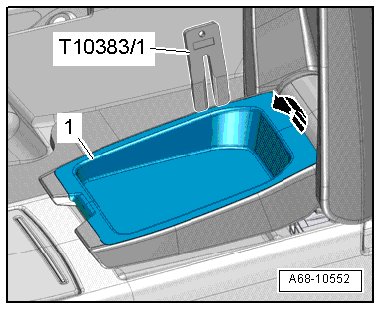

- Unclip the storage compartment - 1 - from the center armrest starting at the rear using a wedge (T10383/1) - arrow -.

- Remove the storage compartment from the armrest.

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Front Center Armrest Assembly Overview ] Description and Operation.
