Front Ashtray/Storage Compartment

Front Ashtray/Storage Compartment

Removing






- Remove the center console insert. Refer to => [ Center Console Insert ] Center Console Insert.

- Remove the Climatronic control module (J255).

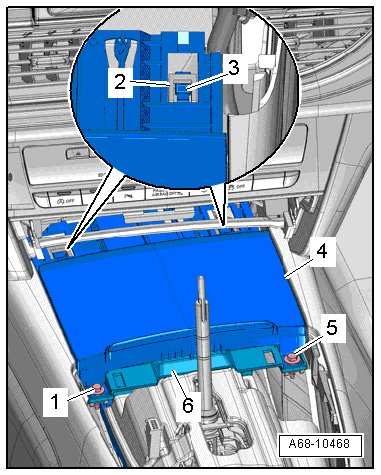

- Remove the bolts - 1 - and - 5 -.

- Remove the cover - 4 - from the mounts - 2 -.

- Remove the ashtray/storage compartment - 6 - and disconnect the connector from the cigarette lighter.

Installing

Install in reverse order of removal. Note the following:

- Insert the front cover - 4 - and rubber grommet - 3 - into the mounts - 2 -.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Front Center Console Assembly Overview ] Front Center Console Assembly Overview.
