Cupholder Trim

Cupholder Trim

Removing






- Remove the cupholder. Refer to => [ Cupholder ] Cupholder.

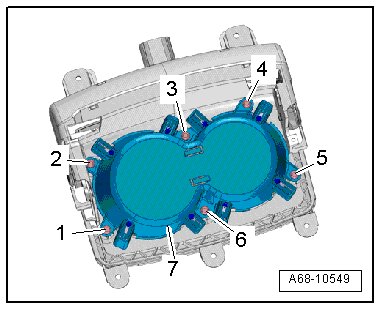

- Remove the screws - 1 through 6 - and the bracket - 7 -.

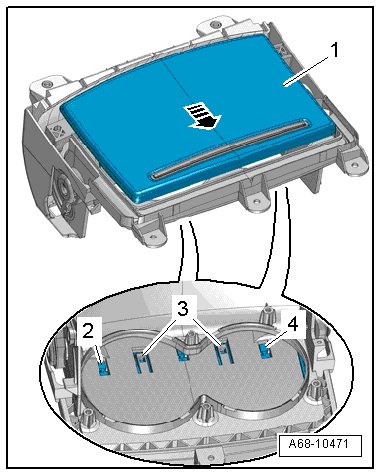

- Lift the retainers - 3 - by the bottom using a small screwdriver and push the trim in- direction of arrow - at the same time.






- Remove the trim - 1 - from the cover.

Installation

Install in reverse order of removal. Note the following:

- Attach the trim mounts - 2 - and - 4 - to the cover.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Front Center Console Assembly Overview ] Front Center Console Assembly Overview.
