Center Console Trim Panel

Center Console Trim Panel

Removing






- Remove center console. Refer to => [ Center Console ] Center Console.

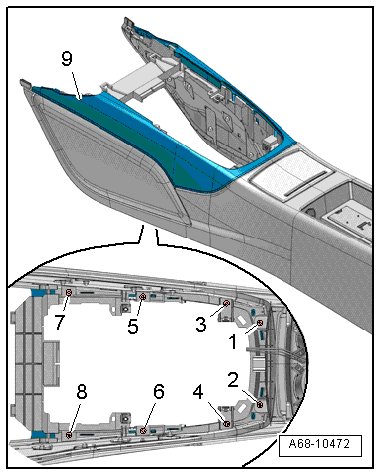

- Remove the bolts - 1 through 8 - and the center console trim panel - 9 -.

Installation

Install in reverse order of removal. Note the following:

- Tighten the bolts in a - 1 to 8 - sequence.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Front Center Console Assembly Overview ] Front Center Console Assembly Overview.
