Center Console Storage Compartment

Center Console Storage Compartment

Removing






- Remove center console. Refer to => [ Center Console ] Center Console.

- Remove the rear bracket for the center console. Refer to => [ Center Console Rear Bracket ] Center Console Rear Bracket.

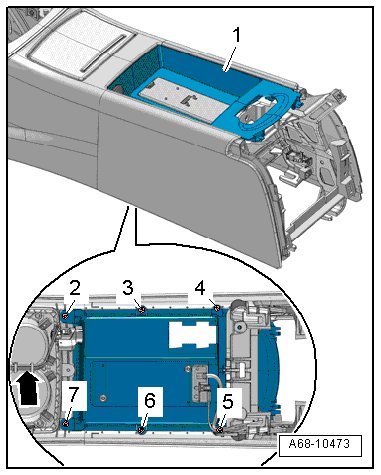

- Free up the electric wires - arrow -.

- Remove the bolts - 2 through 7 - and remove the storage compartment - 1 - downward.

- With a telephone baseplate (R126): remove the telephone baseplate (R126).

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Front Center Console Assembly Overview ] Front Center Console Assembly Overview.
