Center Console Rear Cover

Center Console Rear Cover

Special tools, testers and auxiliary items required

• Wedges (T10383)

Removing






- Remove the rear vent. Refer to => [ Rear Vents ] Rear Vents.

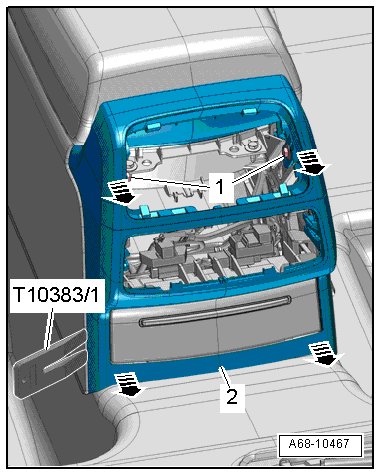

- Remove the bolts - 1 -.

- Unclip the cover - 2 - on the sides, starting at the top, using a wedge (T10383/1) - arrows -.

- Remove the cover toward the rear from the center console.

- Disconnect electrical connections.

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Front Center Console Assembly Overview ] Front Center Console Assembly Overview.
