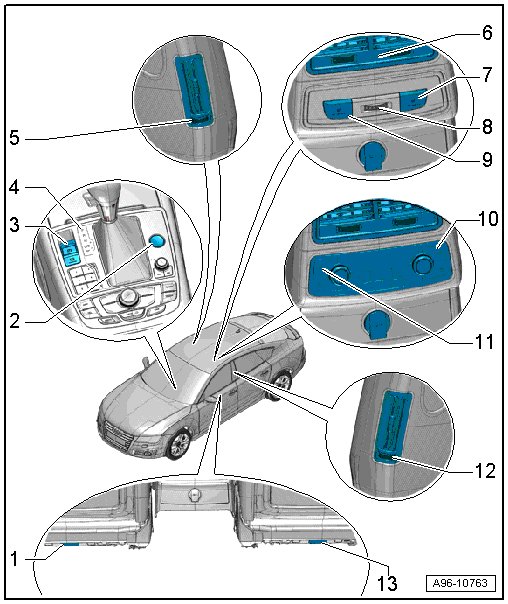

Center Console Lamps and Switches Overview

Center Console Lamps and Switches Overview






1 Left Rear Footwell Light (W45)

• Removing and installing, refer to => [ Rear Footwell Lamp ] Rear Footwell Lamp.

2 Access/Start Authorization Button (E408)

• Removing and installing, refer to => [ Access/Start Authorization Button (E408) ] Access/Start Authorization Button (E408).

3 Electromechanical Parking Brake Button (E538)

• Vehicles with -AUTO HOLD- button (E540).

• Removing and installing, refer to => [ Electro-Mechanical Parking Brake and -AUTO HOLD- Buttons (E538)/(E540) ] Electro-Mechanical Parking Brake and -Auto Hold- Buttons (E538)/(E540).

4 Selector Lever Transmission Range Position Display Unit (Y26)

• Removing and installing, refer to => [ Selector Lever Transmission Range Position Display (Y26) ] Selector Lever Transmission Range Position Display (Y26).

5 Right B-Pillar Vent

• Vehicles with right rear air vent illumination bulb (L89).

• Cannot be replaced separately if faulty.

6 Rear Center Air Vent Illumination Bulb (L87)

• Equipment level

• Cannot be replaced separately if faulty.

• Removing and installing.

7 Right Rear Heated Seat Regulating Switch (E129)

• Removing and installing, refer to => [ Rear Heated Seat Regulating Switches, With Basis A/C System (E128)/(E129) ] Rear Heated Seat Regulating Switches, With Basis A/C System (E128)/(E129).

8 Rear Temperature Selection Potentiometer (G538)

• Country-specific and equipment level.

• Common part with trim, cannot be replaced separately.

• Removing and installing.

9 Left Rear Heated Seat Regulating Switch (E128)

• Removing and installing, refer to => [ Rear Heated Seat Regulating Switches, With Basis A/C System (E128)/(E129) ] Rear Heated Seat Regulating Switches, With Basis A/C System (E128)/(E129).

10 Right Rear Heated Seat Regulating Switch (E129)

• Equipment level.

• Integrated in Rear Climatronic A/C display control head (E265). Cannot be replaced separately if faulty.

• Replace Rear Climatronic A/C display control head (E265)

11 Left Rear Heated Seat Regulating Switch (E128)

• Equipment level

• Integrated in Rear Climatronic A/C display control head (E265). Cannot be replaced separately if faulty.

• Replace Rear Climatronic A/C display control head (E265)

12 Left B-Pillar Vent

• Vehicles with Left rear air vent illumination bulb (L88).

• Cannot be replaced separately if faulty.

13 Right Rear Footwell Light (W46)

• Removing and installing, refer to => [ Rear Footwell Lamp ] Rear Footwell Lamp.
