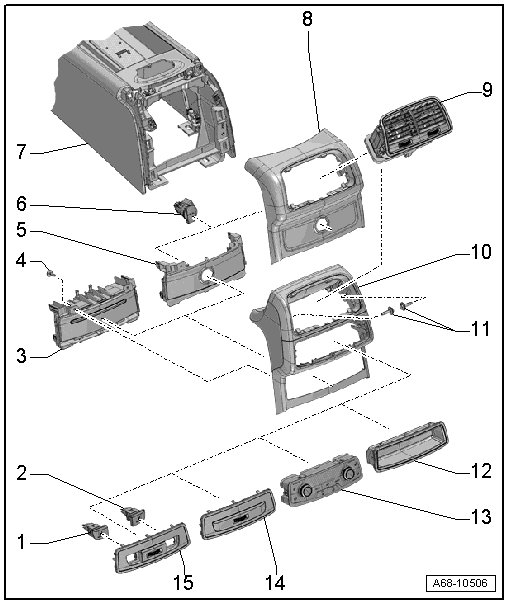

Rear Cover With Attachments Assembly Overview

Rear Cover with Attachments Assembly Overview






1 Left rear heated seat regulating switch (E128)

• If equipped

• Press onto the cover until it audibly latches.

2 Switch with right rear heated seat control (E129)

• If equipped

• Press onto the cover until it audibly latches.

3 Mount

• For the cigarette lighter and socket

• If equipped

• Removing and Installing, refer to => [ Cigarette Lighter and Socket Mount ] Cigarette Lighter and Socket Mount

4 Bolt

• Quantity: 2

• 1,4 Nm

5 Trim

• For 12 V socket 2 (U18)

• If equipped

• Removing and Installing, refer to => [ Cigarette Lighter and Socket Mount ] Cigarette Lighter and Socket Mount

6 12 V socket 2 (U18)

7 Center Console

• Removing and Installing, refer to => [ Center Console ] Center Console

8 Rear cover

• For the center console

• without center armrest

• Removing and Installing, refer to => [ Center Console Rear Cover ] Center Console Rear Cover

9 Rear vent

• Removing and Installing, refer to => [ Rear Vents ] Rear Vents

• Replace damaged or deformed clips

• Press into the installation opening as far as the stop.

10 Rear cover

• For the center console

• With a center armrest

• Removing and Installing, refer to => [ Center Console Rear Cover ] Center Console Rear Cover

11 Screws

• 3 Nm

12 Storage compartment

•

• Removing and Installing, refer to => [ Rear Heated Seat Regulating Switches E128/E129 ] Rear Heated Seat Regulating Switches E128/E129

• Replace damaged or deformed clips

• Press onto the cover until it audibly latches.

13 Rear A/C display control head (E265)

14 Cover

• Country-specific: with rear temperature selection potentiometer (G538)

• Removing and Installing, refer to => [ Rear Heated Seat Regulating Switches E128/E129 ] Rear Heated Seat Regulating Switches E128/E129

• Press onto the cover until it audibly latches.

15 Switch cover

• Country-specific: with rear temperature selection potentiometer (G538)

• Removing and Installing, refer to => [ Rear Heated Seat Regulating Switches E128/E129 ] Rear Heated Seat Regulating Switches E128/E129

• Press onto the cover until it audibly latches.
