Triangular Trim

Triangular Trim






- Remove door trim.

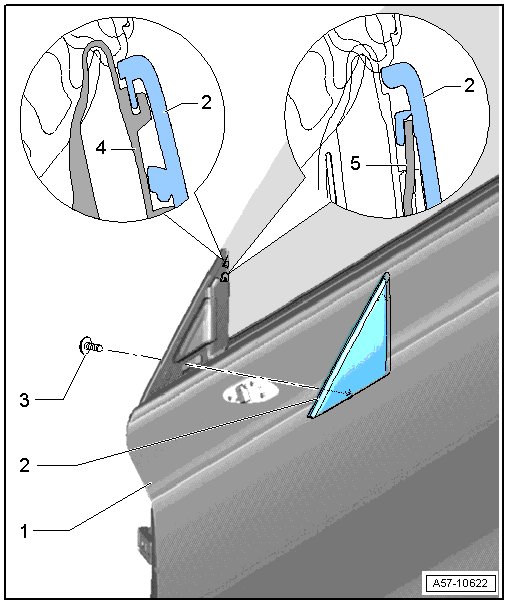

- Remove the inner window shaft strip - 3 - over the bolt - 3 -.

- Remove the bolt and the triangular trim - 2 -.

- The triangular trim must hook into the inner window shaft strip and into the door as illustrated.

- Tighten bolt to 2 Nm.
