Rear Lid Drive Push Rod

Rear Lid Drive Push Rod






1 Push rod

To prevent personal injuries or damaging the rear lid and/or the vehicle body, place a support under the rear lid to keep it from falling down.

- Disengage

2 Ball pin bracket

3 Bolt

• 8 Nm

4 Ball stud

• No replacement part.

• Can only be replaced with the rear lid drive mount.

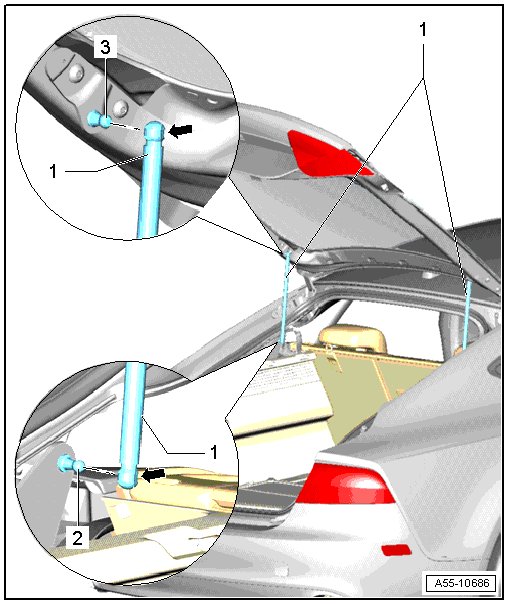

Disengage the push rod






- Lift the locking springs - arrow - on the push rod - 1 - slightly using a small screwdriver and remove it from the ball stud - 2 -.
