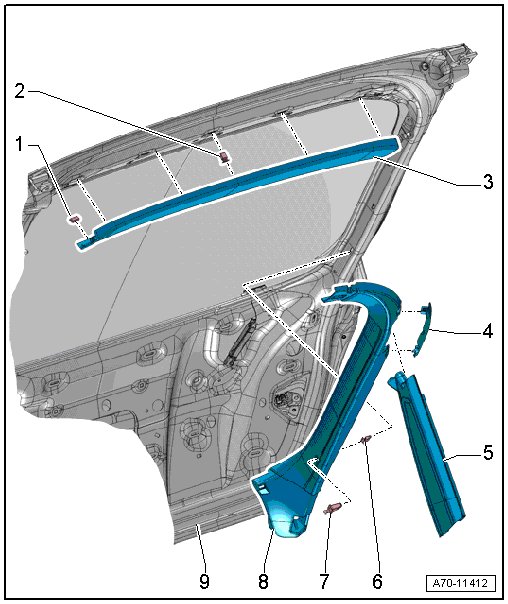

Rear Lid Upper and Side Trim Panel Assembly Overview

Rear Lid Upper and Side Trim Panel Assembly Overview






1 Rubber buffer

• Quantity: 2

• Install in the trim

2 Clips

• Quantity: 5

• Install in the trim

• Remove clips left in the mounting points of the rear lid and use for installation in the trim

• Replace damaged or deformed clips

3 Upper rear lid trim panel

• Removing and Installing, refer to => [ Upper Rear Lid Trim Panel ] Upper Rear Lid Trim Panel

• Press on until it engages audibly

4 Gap cover

• Quantity: 2

• Press on until it engages audibly

5 Wiring guide

• Quantity: 2

• Removing and Installing, refer to => [ Wiring Guide ] Wiring Guide

• Press on until it engages audibly

6 Clips

• Quantity: 6

• Install in the trim

• Remove clips left in the mounting points of the rear lid and use for installation in the trim

• Replace damaged or deformed clips

7 Mount

• Quantity: 2

• For the rear shelf rear section

8 Side rear lid trim panel

• Quantity: 2

• Removing and Installing, refer to => [ Side Rear Lid Trim Panel ] Side Rear Lid Trim Panel

• Press on until it engages audibly

9 Rear lid
