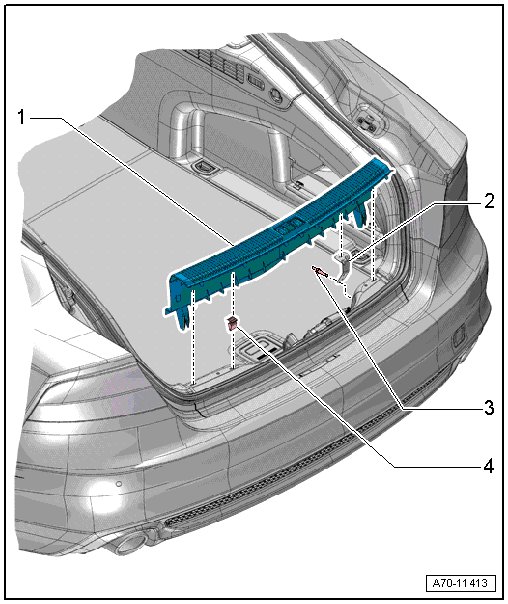

Rear Lid End Panel Trim Panel Assembly Overview

Rear Lid End Panel Trim Panel Assembly Overview






1 Rear cross panel trim

• Removing and Installing, refer to => [ Rear Cross Panel Trim ] Rear Cross Panel Trim

• Press on until it engages audibly

2 Bracket

• For the rear lid end panel trim panel

3 Rivet

• Quantity: 2

4 Clips

• Quantity: 4

• Install in the trim

• Remove clips left in the mounting points of the body and use for installation in the trim

• Replace damaged or deformed clips
