Rear Shelf Rear Section

Rear Shelf Rear Section

Removing

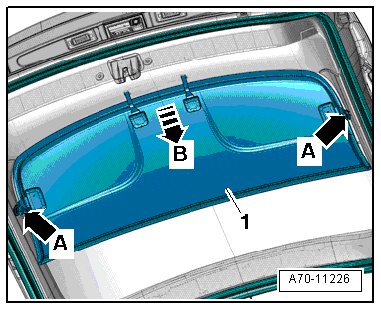

- Disengage the rear shelf - 1 - from the rear lid trim panel - arrows A - and pull it out - arrow B -.

Installation

- Insert the rear shelf into the rear lid trim panel and engage it into the mounts on the left and right sides - arrows A -.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Rear Shelf Assembly Overview ] Service and Repair.
