Lower B-Pillar Trim

Lower B-Pillar Trim

Special tools, testers and auxiliary items required

• Pry lever (80 - 200)

Removing






- Remove the upper B-pillar trim. Refer to => [ Upper B-Pillar Trim ] Upper B-Pillar Trim.

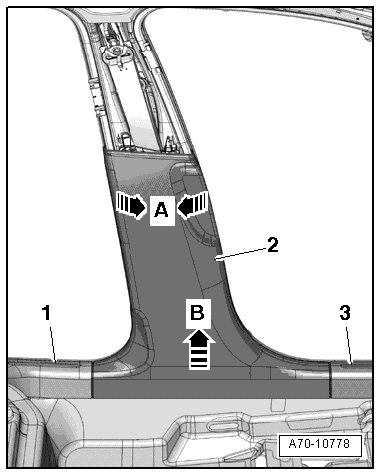

- Starting at the top, unclip the lower B-pillar trim 2 (80 - 200) from the B-pillar - A arrows - using the - pry lever -.

- Unclip the B-pillar lower trim near the rear sill panel strip - 1 - and the front sill panel strip - 3 - from the sill panel - arrow B -.

Installation

Install in reverse order of removal. Note the following:

- Press on the B-pillar trim until it engages audibly.

- Stretch the door seal lips over the trim.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ B-Pillar Trim Assembly Overview ] B-Pillar Trim Assembly Overview.
