Front Rear Shelf

Front Rear Shelf

Removing

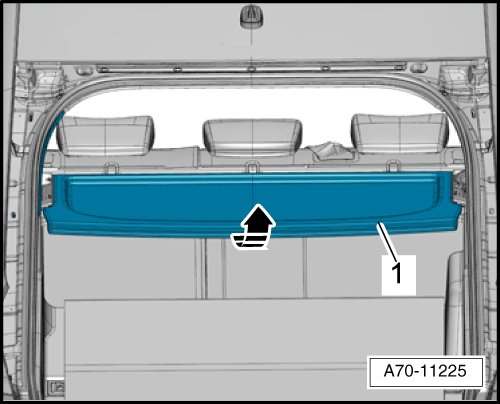

- Pull out the rear shelf - 1 - toward the rear - arrow - and remove.

Installation

- Insert the rear shelf into the mounts on the luggage compartment side trim panel and push it forward.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Rear Shelf Assembly Overview ] Service and Repair.
