D-Pillar Trim

D-Pillar Trim

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

Removing






Follow all safety precautions when working on pyrotechnic components. Refer to => [ Pyrotechnic, Electrical and Mechanical Restraint System Components, Safety Precautions and Testing Procedures ] Testing and Inspection.

- Remove the luggage compartment side trim. Refer to => [ Luggage Compartment Side Trim Panel ] Luggage Compartment Side Trim Panel.

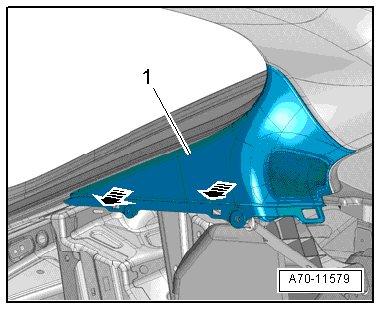

- Unclip the D-pillar trim - 1 - using the trim removal wedge (3409) - arrow -.

Installation

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Pyrotechnic, Electrical and Mechanical Restraint System Components, Safety Precautions and Testing Procedures ] Testing and Inspection.

• Do not pinch the head curtain airbag when installing the D-pillar trim.

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ D-Pillar Trim Assembly Overview ] D-Pillar Trim Assembly Overview.
