Spare Wheel Well Trim

Spare Wheel Well Trim

Removing






- Remove the rear cross panel trim. Refer to => [ Rear Cross Panel Trim ] Rear Cross Panel Trim.

- Vehicles with a spare wheel: remove the spare wheel.

- Remove the vehicle tool kit mount.

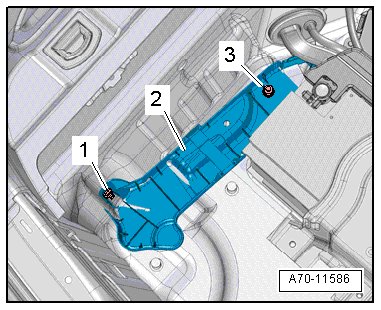

- Vehicles with a vehicle jack: remove the nuts - 1 -, - 3 -, the vehicle jack and remove the mount - 2 - for the jack.

- Vehicles with a break-down kit: remove the break-down kit

- Vehicles with a subwoofer: remove the subwoofer.

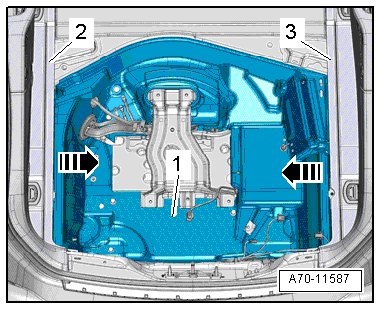

- Remove the spare wheel side well trim - 1 - under the luggage compartment side trim panels - 2 -, - 3 - - arrows -.






• Loosen the bolts on the rear tie down if it is difficult to remove the trim panel. Refer to => [ Tie Down ] Tie Down.

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Luggage Compartment Floor Mat Assembly Overview ] Luggage Compartment Floor Mat Assembly Overview.
