Rear Panel Sill Frame

Rear Panel Sill Frame

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

Removing






- Remove the luggage compartment side trim. Refer to => [ Luggage Compartment Side Trim Panel ] Luggage Compartment Side Trim Panel.

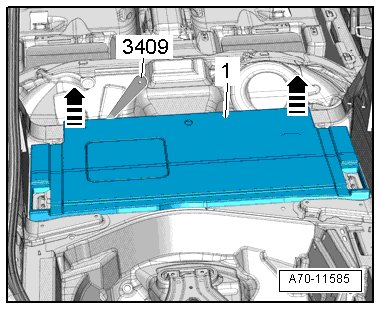

- Remove the front easy load frame - 1 - using the trim removal wedge (3409) - arrows -.

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Luggage Compartment Floor Mat Assembly Overview ] Luggage Compartment Floor Mat Assembly Overview.
