Rear Cross Panel Trim

Rear Cross Panel Trim

Special tools, testers and auxiliary items required

• Pry lever (80 - 200)

Removing






- Fold the luggage compartment floor covering forward.

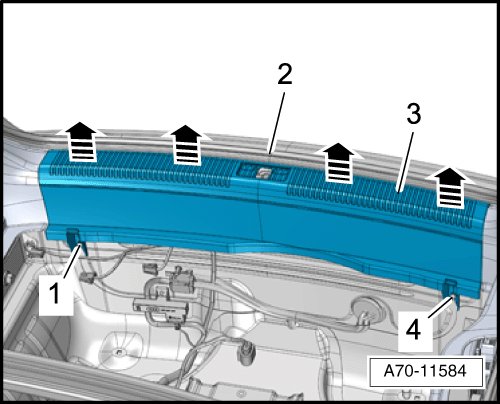

- Remove the rear lid seal - 2 - near the rear lid end panel trim panel.

- Unclip the rear lid end panel trim panel - 3 - upward vertically using a pry lever (80 - 200) - arrows -.

• A lot of force is be needed to remove the rear lid end panel trim panel from the rear lid end piece.

Installation

Install in reverse order of removal. Note the following:

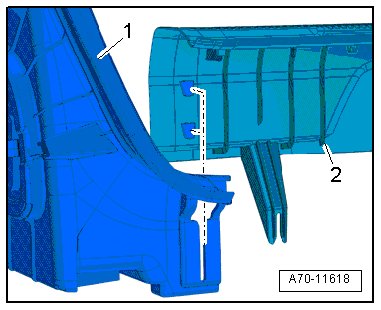

• The tabs must fit into the pins - 1 - and - 4 -.

• The rear lid end panel trim panel - 2 - must engage in the luggage compartment side trim panel - 1 -.






- Fold the rear lid seal over the rear lid end panel trim panel.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Rear Lid End Panel Trim Panel Assembly Overview ] Rear Lid End Panel Trim Panel Assembly Overview.
