Luggage Compartment Side Trim Panel

Luggage Compartment Side Trim Panel

Special tools, testers and auxiliary items required

• Pry lever (80 - 200)

Removing






- Remove the side cushion. Refer to => [ Side Cushion ] Side Cushion.

- Remove the rear shelf front section. Refer to => [ Front Rear Shelf ] Front Rear Shelf.

- Remove the luggage compartment liner. Refer to => [ Luggage Compartment Liner ] Luggage Compartment Liner.

- Remove the rear cross panel trim. Refer to => [ Rear Cross Panel Trim ] Rear Cross Panel Trim.

- Remove the tie-down. Refer to => [ Tie Down ] Tie Down.

- Remove the coat hook. Refer to => [ Coat Hooks ] Coat Hooks.

- Remove the luggage compartment lamp (W3) inside the luggage compartment side trim panel.

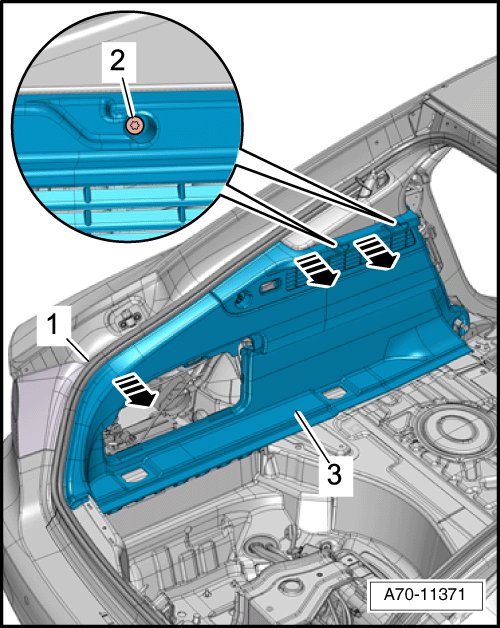

- Remove the rear lid seal - 1 - near the luggage compartment side trim panel.

- Remove the bolts - 2 -.

- Pry off the luggage compartment side trim - 3 - using the pry lever (80 - 200) from the body - arrows -.

- Carefully remove the luggage compartment side trim panel from the D-pillar trim.

- Disconnect electrical connectors.

- Remove the luggage compartment side trim panel from the catch for the rear seat backrest.

Installation

Install in reverse order of removal. Note the following:

- Fold the rear lid seal over the luggage compartment side trim panel.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Luggage Compartment Side Trim Assembly Overview ] Luggage Compartment Side Trim Assembly Overview.
