Luggage Compartment Liner







Luggage Compartment Liner

Removing

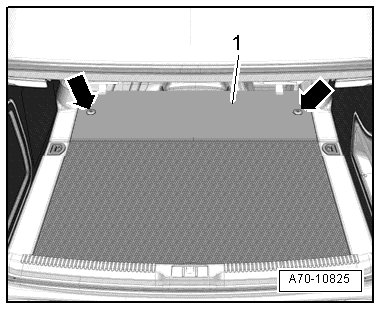

- Detach luggage compartment floor covering - 1 - in the front - arrows - and remove it.

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Luggage Compartment Floor Mat Assembly Overview ] Luggage Compartment Floor Mat Assembly Overview.
