Coat Hooks







Coat Hooks

Removing

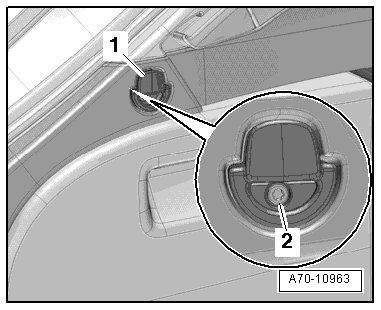

- Remove the bolt - 2 - and the coat hooks - 1 -.

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Luggage Compartment Side Trim Assembly Overview ] Luggage Compartment Side Trim Assembly Overview.
