Push Rod Cover

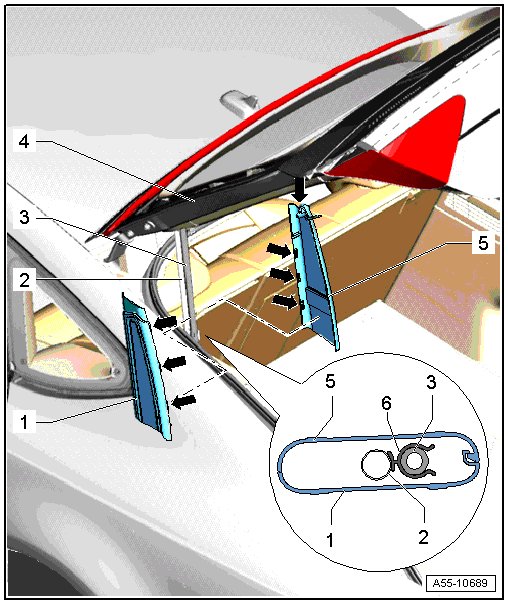

Push Rod Cover






1 Outer cover

- Remove the rear lid upper trim panel.

- Unclip the cover from the push rod toward the center of the vehicle=> [ (Item 2) Push rod ].

- Slide the outer and inner sections of the cover against each other - arrows - and unclip them.

- Remove the inner and outer sections of the cover from the side trim panel.

2 Push rod

3 Electric wire

• Push the wire all the way into the clip when installing.

4 Rear lid

5 Inner cover

6 Clip

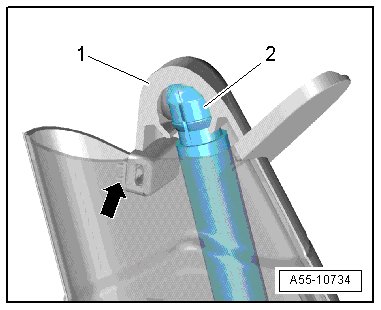

Unclip Inner Cover From Push Rod






- Unclip the upper trim - 1 - - arrow - and then remove it from the push rod - 2 -.
