Rear Lid Lock Cylinder Unlock Button

Rear Lid Lock Cylinder Unlock Button

Removing






- Remove the rear lid lower trim panel.

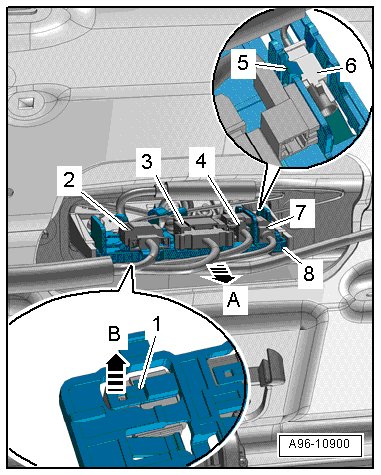

- Disconnect the connectors - 2, 3 and 4 - and the antenna wire - 7 -.

- Remove the retainer - 8 - - arrow A -.

- Release the tab - 1 - - arrow B -, push the connector out of the mount and free up the wire.

- Push the tab - 5 - to the side, remove the antenna connector - 6 - and free up the wire.

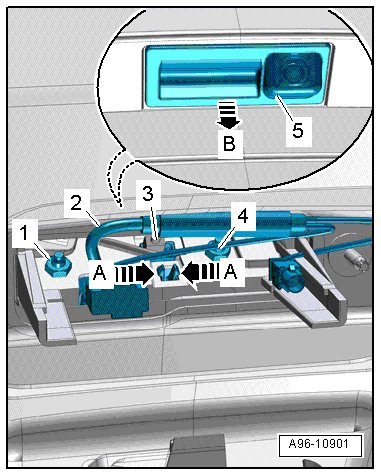

- Remove the nuts - 1 and 4 -.






- Disconnect the electrical connector - 3 -.

- Release the tab - arrows A - and remove the button - 5 - toward the outside - arrow B -.

- Guide the electric wire - 2 - out through the opening.

Installing

Install in reverse order of removal. Note the following:

- Install the lower rear lid trim panel.
