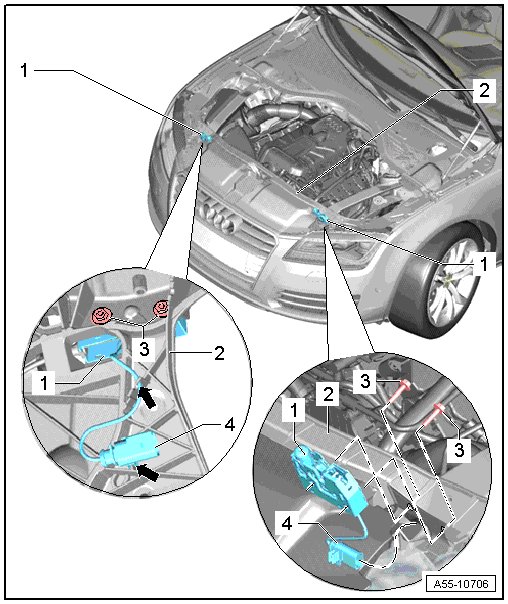

Hood Latch Assembly Overview

Hood Latch Assembly Overview






1 Hood latch

• Loosen the bumper cover at the top.

• Disconnect the cable from the hood latch.

• Disconnect electrical connectors.

• Remove the bolts - 1 - and - 2 -.

• Move the hood latch in the oblong holes in the lock carrier to adjust the height of the hood.

2 Lock carrier

3 Bolt

• 11 Nm

4 Hood latch electric wire

Hood Latch, Removing

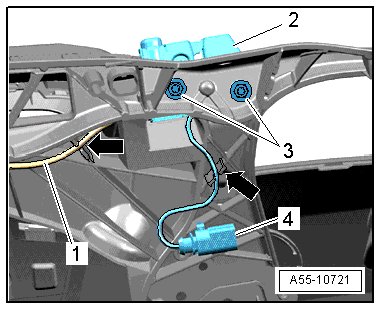

- Disconnect the connector - 4 - from the anti-theft alarm system.

- Disconnect the connector from the lock carrier.

- Remove the bolts - 3 -.

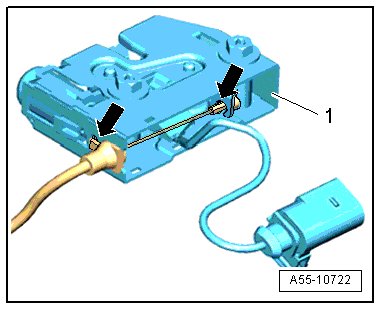

- Disconnect the hook from the cable - left arrow - and remove it with the guide downward from the hood latch - 1 -.






- Disengage the cable nipple from the hood release lever - right arrow -.
