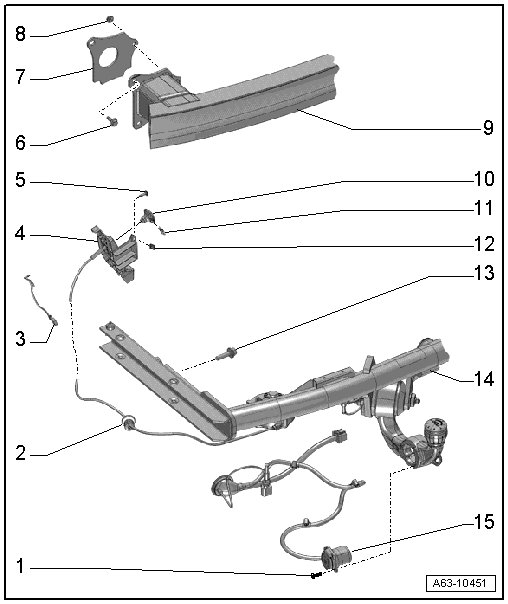

Impact Bar Assembly Overview

Impact Bar Assembly Overview






1 Bolt

• Quantity: 3

• 3.5 Nm

2 Grommet

• For the cable

3 LED indicator lamp

• Make sure the trailer hitch it locked correctly

4 Mount

• For the cable

• Removing and Installing, refer to => [ Cable Mount ] Cable Mount

5 Bolt

• Quantity: 3

• 2 Nm

6 Bolt

• Quantity: 3

• 30 Nm

7 Foam seal

• Replace if damaged

8 Nut

• 30 Nm

9 Side impact bar

• For vehicles without a trailer hitch

• Removing and Installing, refer to => [ Impact Member without Trailer Hitch ] Impact Member Without Trailer Hitch

10 Pull knob

• For unlocking the trailer hitch

• Removing and Installing, refer to => [ Cable Mount ] Cable Mount

11 Lock clamp

• For the pull knob

12 Threaded clip

• Quantity: 3

13 Bolt

• Quantity: 2

• Tightening sequence => [ Impact member to trailer hitch - tightening specification and sequence ]

14 Side impact bar

• For vehicles with a trailer hitch

• Removing and Installing, refer to => [ Impact Member with Trailer Hitch ] Impact Member With Trailer Hitch

15 Power outlet

Impact member to trailer hitch - tightening specification and sequence





- Tighten the bolts in a - 1 to 4 - sequence to 60 Nm.
