Right Impact Member Mount

Right Impact Member Mount

Removing






- Remove the right wheel spoiler. Refer to => [ Front Wheel Spoiler ] Front Wheel Spoiler.

- Remove the side impact bar. Refer to => [ Impact Member ] Impact Member.

- Remove the connecting brace. Refer to => [ Connecting Brace ] Connecting Brace.

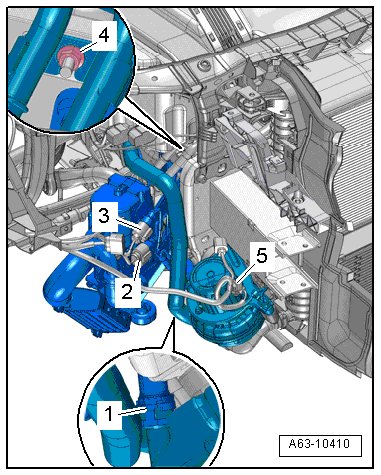

- Disconnect the connector - 5 - from the horn.

- If the vehicle has an auxiliary heater, remove the nut - 4 - and free up the coolant lines.

- Press the release, push the connector down and then free up the connectors - 2 and 3 - on the brackets.

- If the vehicle has a secondary air injection pump motor, then press the release button and remove the hose from the secondary air injection pump - 1 -.

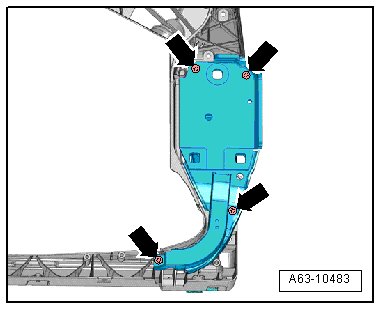

- Remove the bolts - arrows -.






- Mark the installation position of the mount to the lock carrier for installation later.






- Remove the bolts - arrows -.

- Move the lock carrier - 1 - slightly to the front and remove the impact member mount - 21 - to the right.

Installing

• For the correct tightening specifications, refer to => [ Impact Bar Assembly Overview ] Impact Bar Assembly Overview.

Installation is reverse of removal, but note the following:

- Tighten the impact member mount according to the marking made during removal.

- Connect the secondary air injection pump.

- Install the coolant lines to the auxiliary heater.

- Install the connecting brace. Refer to => [ Connecting Brace ] Connecting Brace.

- Install the impact member. Refer to => [ Impact Member ] Impact Member.

- Install the right wheel spoiler. Refer to => [ Front Wheel Spoiler ] Front Wheel Spoiler.
