Impact Member

Impact Member

Removing






• When installing, position cable ties in same place.

- Remove the front bumper cover. Refer to => [ Front Bumper Cover ] Front Bumper Cover.

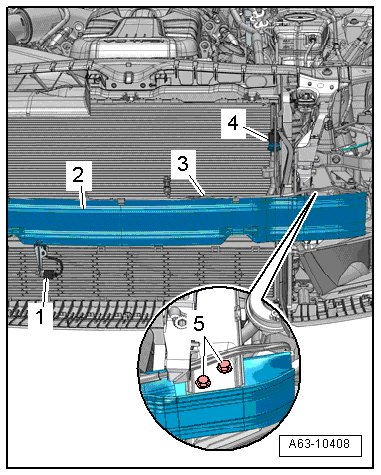

- Disconnect the connector from the outside air temperature sensor (G17) - 1 - and A/C pressure/temperature sensor (G395) - 4 - and free up the wiring harness - 3 -.

- Remove the nuts and bolts - 5 - upward.

- Remove the impact bar - 2 - from the mounts.

• Pry the impact bar out of the mounts if it is not easy to remove.

- If the impact member is being replaced, then remove the bracket for the outside air temperature sensor (G17). Refer to => [ Outside Air Temperature Sensor Bracket ] Outside Air Temperature Sensor Bracket.

Installing

• For the correct tightening specifications refer to => [ Front Impact Member - Tightening Specification and Sequence ] Impact Bar Assembly Overview.

Installation is reverse of removal, but note the following:

- Install the front bumper cover. Refer to => [ Front Bumper Cover ] Front Bumper Cover.
