Impact Bar Assembly Overview

Impact Bar Assembly Overview

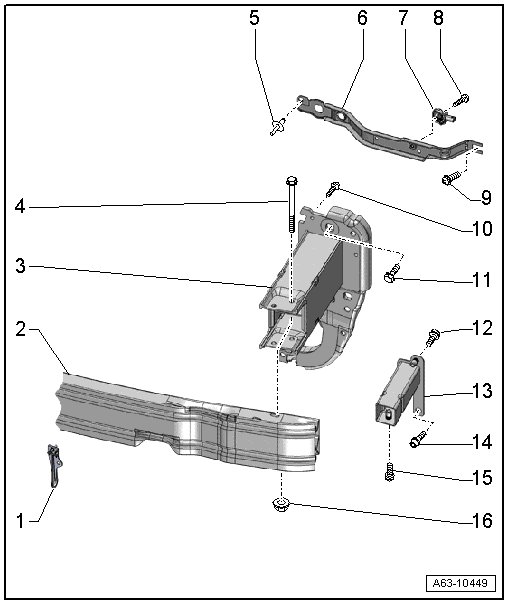

1 Bracket

• For the outside air temperature sensor (G17)

• Removing and Installing, refer to => [ Outside Air Temperature Sensor Bracket ] Outside Air Temperature Sensor Bracket

2 Side impact bar

• Removing and Installing, refer to => [ Impact Member ] Impact Member

3 Impact member mount

• Removing and Installing: left refer to => [ Left Impact Member Mount ] Left Impact Member Mount, right refer to => [ Right Impact Member Mount ] Right Impact Member Mount

4 Bolt

• Quantity: 2

5 Rivet

• Secures the lock carrier

6 Connecting brace

• For supporting the front bumper cover mount

• Removing and Installing, refer to => [ Connecting Brace ] Connecting Brace

7 Front Airbag Crash Sensor

8 Bolt

9 Bolt

• 4.5 Nm

10 Bolt

• Quantity: 4

• 10 Nm

11 Bolt

• Quantity: 3

• 55 Nm

12 Bolt

• 20 Nm

13 Lower front longitudinal member

• Removing and Installing, refer to => [ Front Lower Longitudinal Member ] Front Lower Longitudinal Member

14 Bolt

• 20 Nm

15 Bolt

• 20 Nm

16 Nut

• Quantity: 2

• Tightening specification => [ Front Impact Member - Tightening Specification and Sequence ]

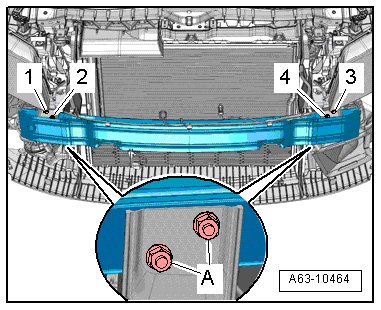

Front Impact Member - Tightening Specification and Sequence





- Tighten the nuts - A - to 20 Nm in the following sequence: - 1 through 4 -.
