Diagram 5/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

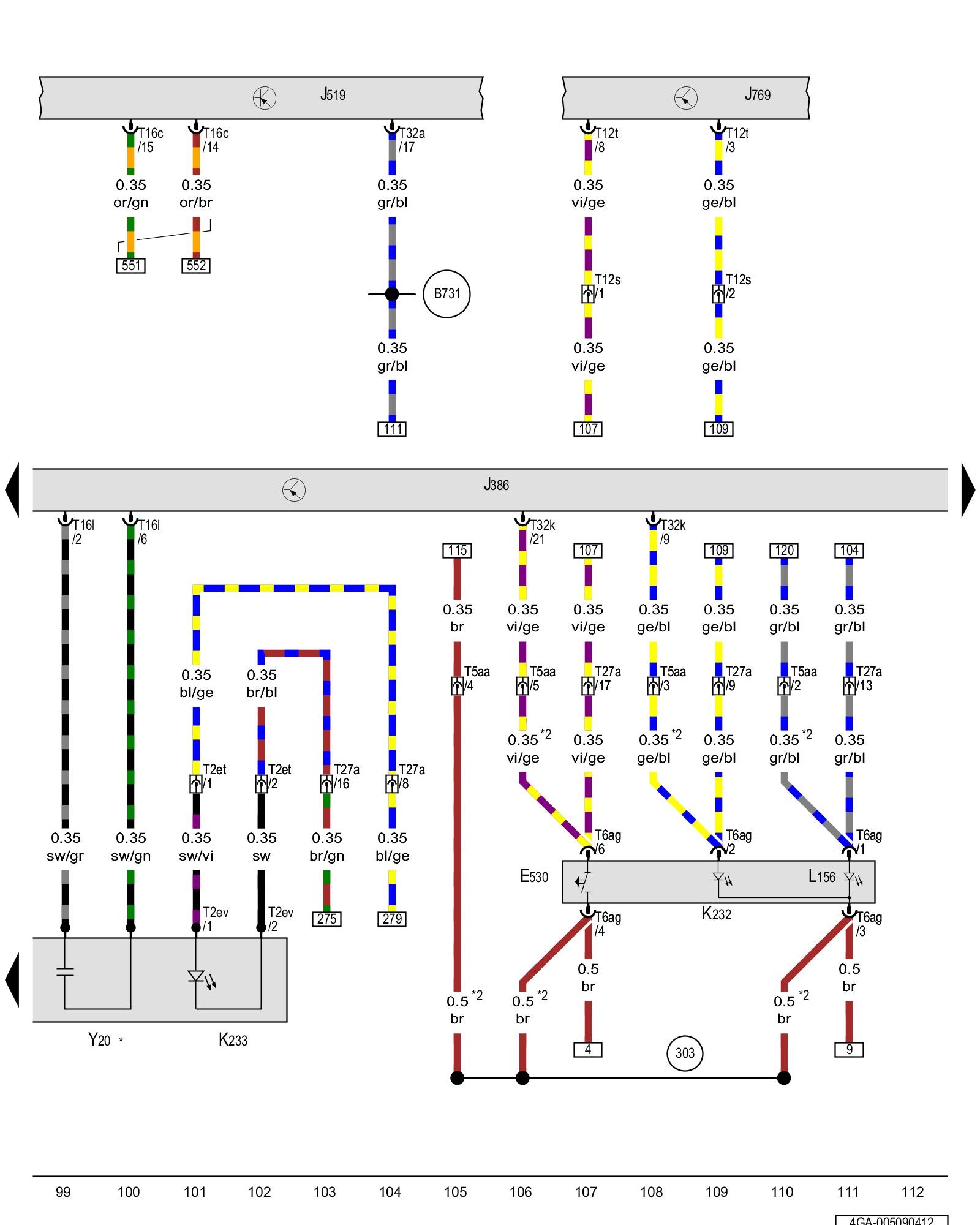

Lane change assistance button, Driver door control module, Lane change assistance warning lamp in driver exterior rearview mirror





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E530 - Lane change assistance button Lane Assist System Overview

J386 - Driver door control module

J519 - Vehicle electrical system control module Locations

J769 - Lane change assistance control module Lane Assist System Overview

K232 - Lane change assistance indicator lamp

K233 - Lane change assistance warning lamp in driver exterior rearview mirror Lane Assist System Overview

L156 - Switch illumination bulb

T2et - Double connector, in the driver door

T2ev - Double connector

T5aa - 5-pin connector, in the left front door

T6ag - 6-pin connector

T12s - 12-pin connector, behind the right rear bumper

T12t - 12-pin connector Lane Change Assistance Control Module 2 -J770-

T16c - 16-pin connector Vehicle Electrical System Control Module -J519-

T16l - 16-pin connector Driver's Door Control Module -J386-

T27a - 27-pin connector, in the left A-pillar

T32a - 32-pin connector Vehicle Electrical System Control Module -J519-

T32k - 32-pin connector Driver's Door Control Module -J386-

Y20 - Driver automatic dimming exterior rearview mirror

(303) - Ground connection 3 (in driver door wiring harness)

(B731) - Connection 1 (58s) (in main wiring harness)

* - Only for vehicles with automatic dimming exterior rearview mirror

*2 - from June 2011
