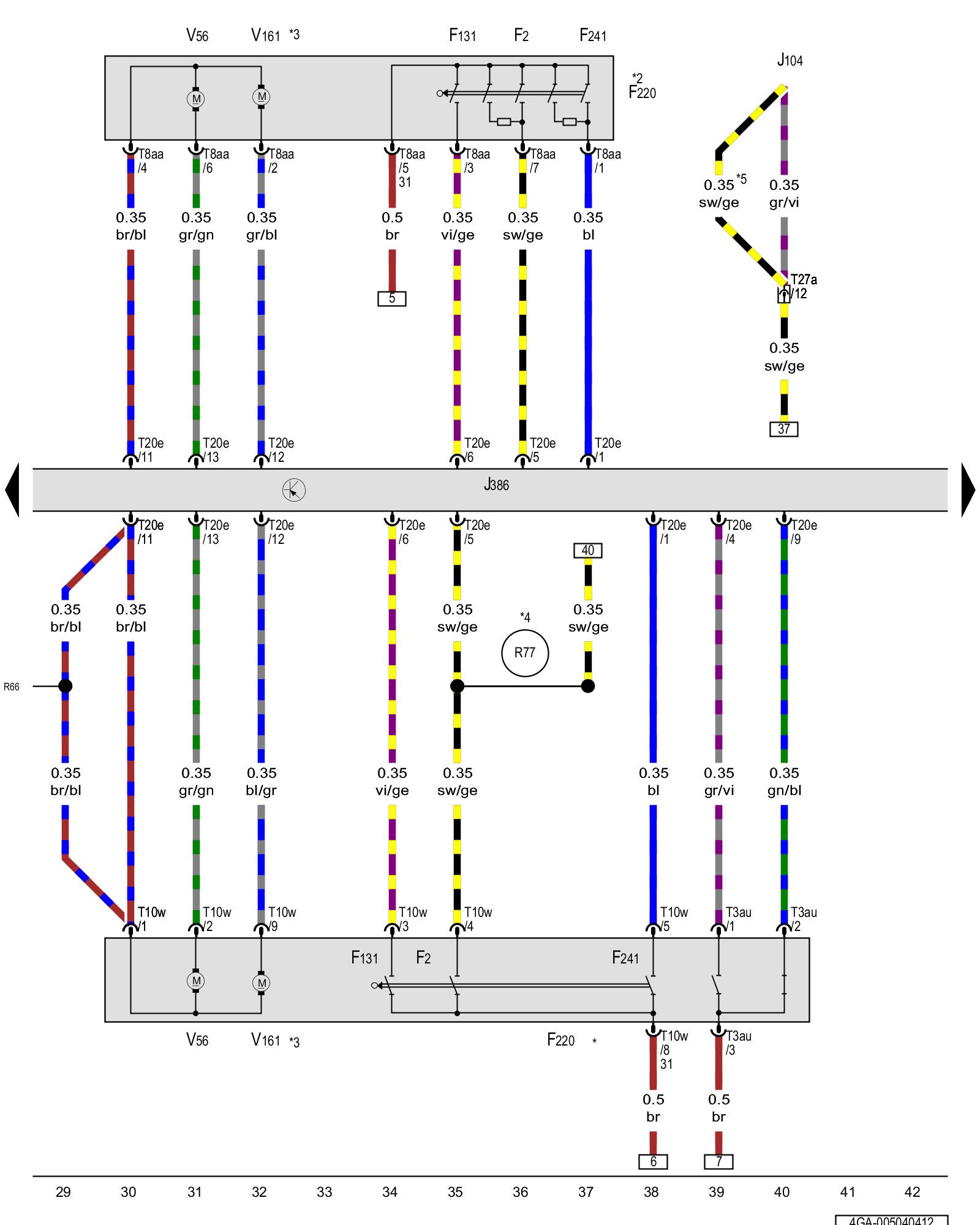

Diagram 5/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver central locking lock unit, Driver door control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F2 - Driver door contact switch

F131 - Left front central locking system actuator

F220 - Driver central locking lock unit

F241 - Driver lock cylinder contact switch

J104 - ABS control module Locations Locations

J386 - Driver door control module

T3au - 3-pin connector

T8aa - 8-pin connector

T10w - 10-pin connector

T20e - 20-pin connector Driver's Door Control Module -J386-

T27a - 27-pin connector, in the left A-pillar

V56 - Driver door central locking system motor

V161 - Driver door central locking -SAFE- motor

(R66) - Central locking positive connection (in driver door wiring harness)

(R77) - Door contact switch connection 1 (in driver door wiring harness)

* - Only for vehicles with door closing aid

*2 - Only for vehicles without door closing aid

*3 - Not for USA

*4 - Only for vehicles with adaptive cruise control (ACC)

*5 - from June 2011
