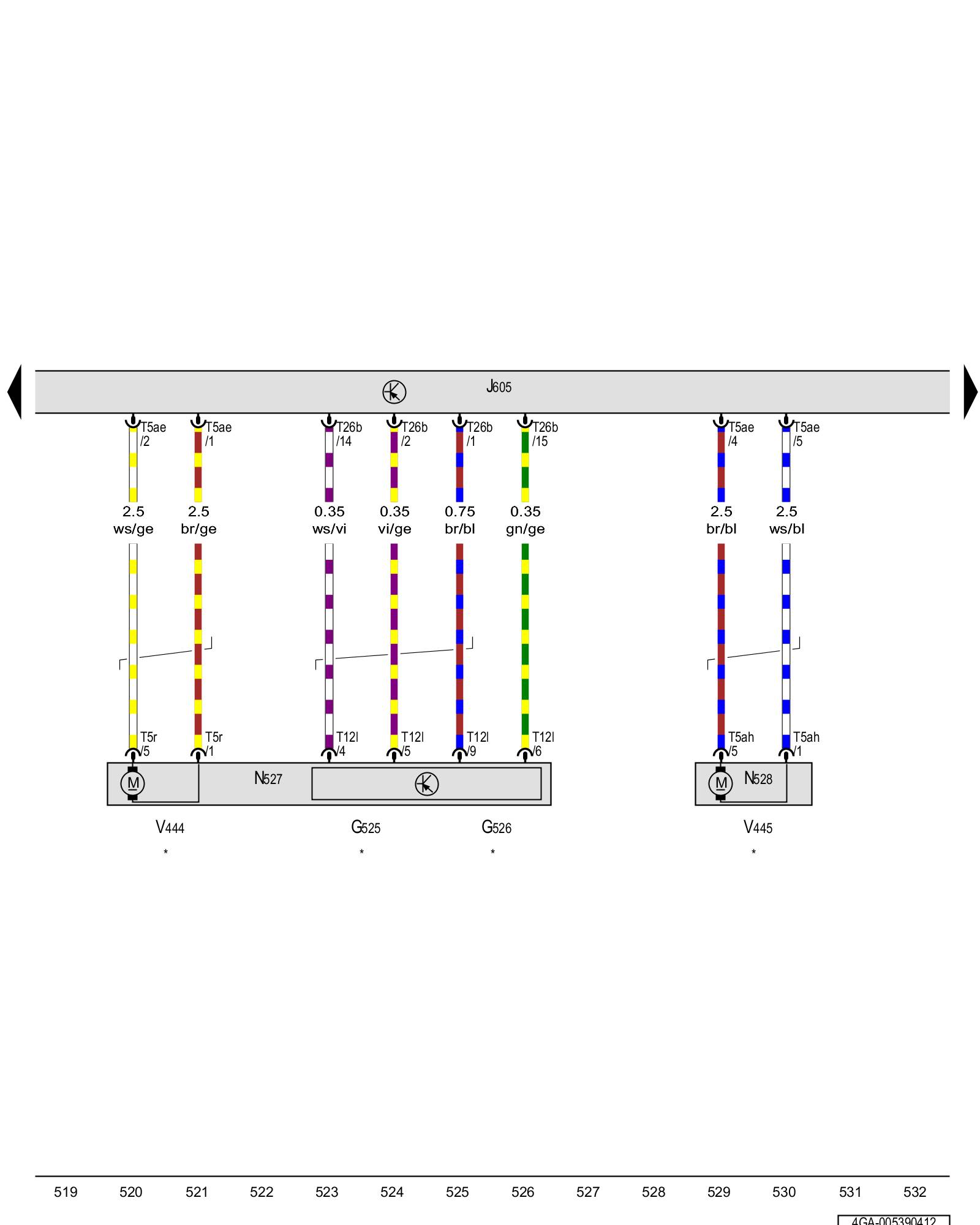

Diagram 5/39 (Tracks 519-532)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Rear lid -closed- sensor 1, Rear lid control module, Rear lid motor 1, Rear lid motor 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G525 - Rear lid -closed- sensor 1

G526 - Rear lid -closed- sensor 2

J605 - Rear lid control module Locations

N527 - Coupling in rear lid motor 1

N528 - Coupling in rear lid motor 2

T5ae - 5-pin connector Locations

T5ah - 5-pin connector

T5r - 5-pin connector

T12l - 12-pin connector

T26b - 26-pin connector Locations

V444 - Rear lid motor 1

V445 - Rear lid motor 2

* - Through May 2011
