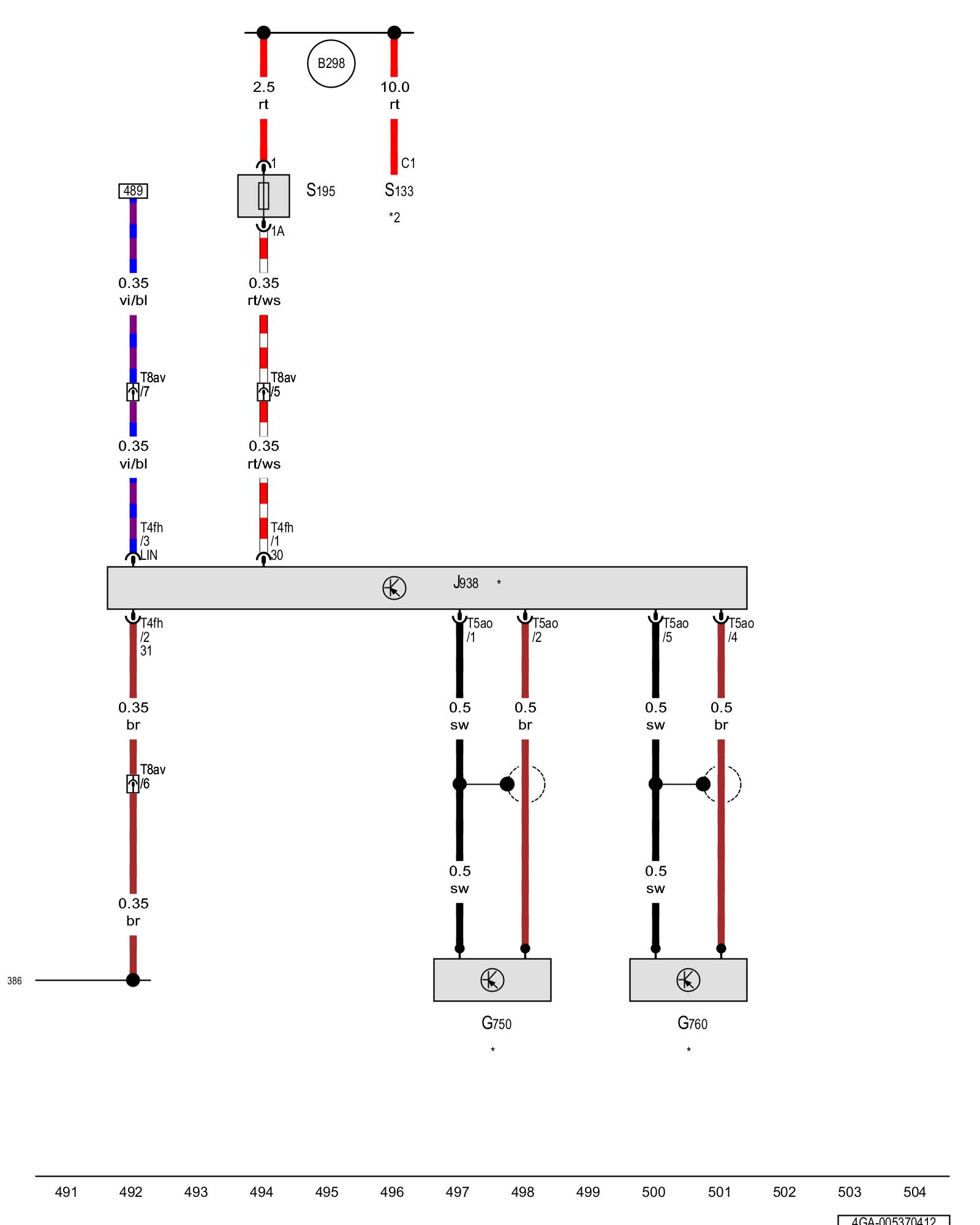

Diagram 5/37 (Tracks 491-504)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power rear lid opener sensor, Rear lid opener sensor 2, Rear lid opener control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G750 - Power rear lid opener sensor, in the rear bumper

G760 - Rear lid opener sensor 2, in the rear bumper

J938 - Rear lid opener control module

S133 - Safety fuse 3 Fuses On Main Fuse Carrier

S195 - Rear lid remote unlocking fuse

T4fh - 4-pin connector

T5ao - 5-pin connector

T8av - 8-pin connector, behind the right luggage compartment side trim

(386) - Ground connection 21 (in main wiring harness)

(B298) - Positive connection 2 (30) (in main wiring harness)

* - Depending on equipment

*2 - Main fuse carrier in the right rear luggage compartment, at the battery
