Diagram 5/36 (Tracks 477-490)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

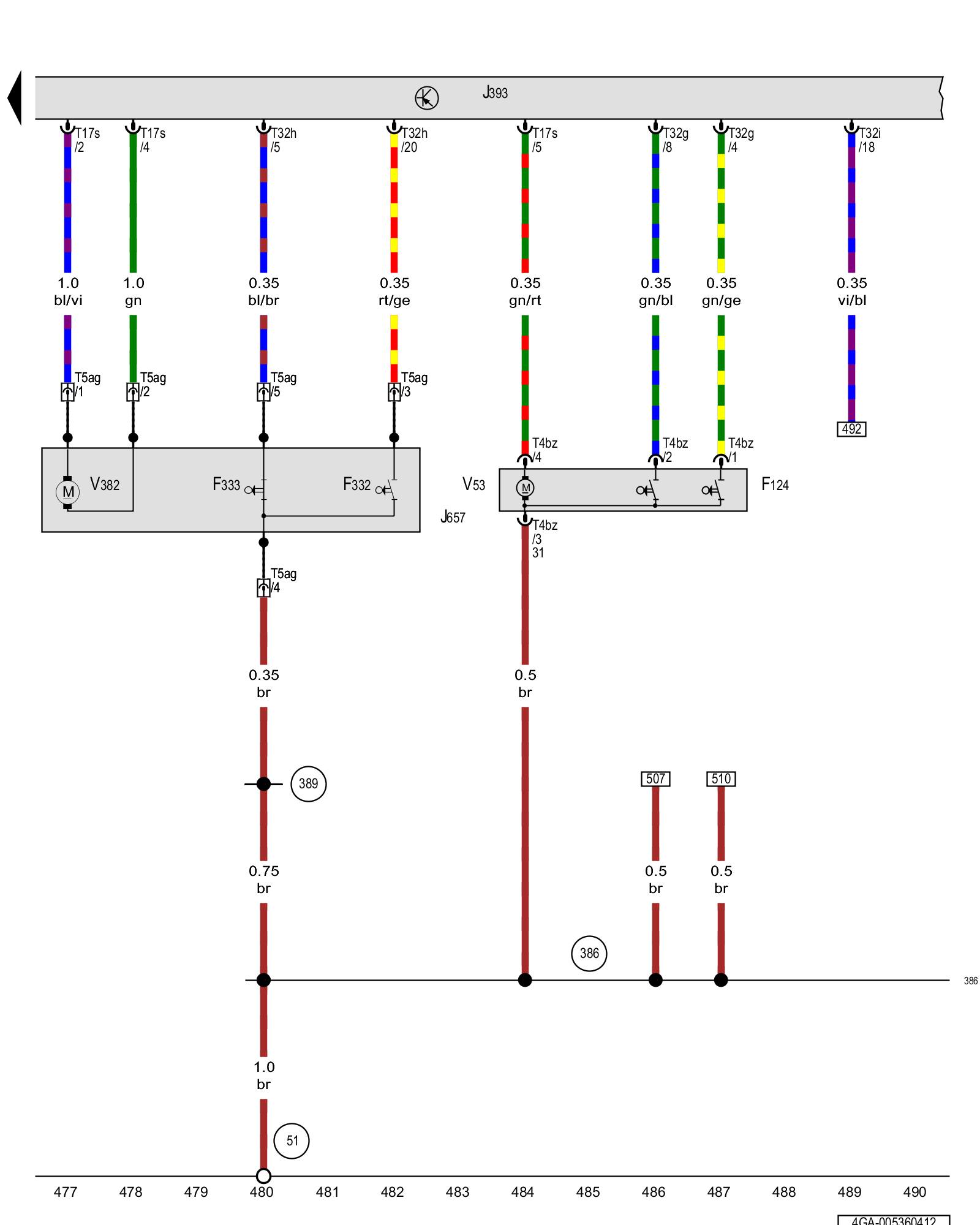

Comfort system central control module, Door closing assist control module, Rear lid central locking system motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F124 - Rear lid lock/alarm/central locking switch

F332 - Rear lid closing assist/unlock stop switch

F333 - Rear lid closing assist/lock stop switch

J393 - Comfort system central control module Locations

J657 - Door closing assist control module Locations

T4bz - 4-pin connector

T5ag - 5-pin connector, in the luggage compartment, right Locations

T17s - 17-pin connector Locations

T32g - 32-pin connector Locations

T32h - 32-pin connector Locations

T32i - 32-pin connector Locations

V53 - Rear lid central locking system motor

V382 - Rear lid closing assist motor

(51) - Ground connection in luggage compartment, right [1][2]Ground Locations

(386) - Ground connection 21 (in main wiring harness)

(389) - Ground connection 24 (in main wiring harness)
