Diagram 5/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

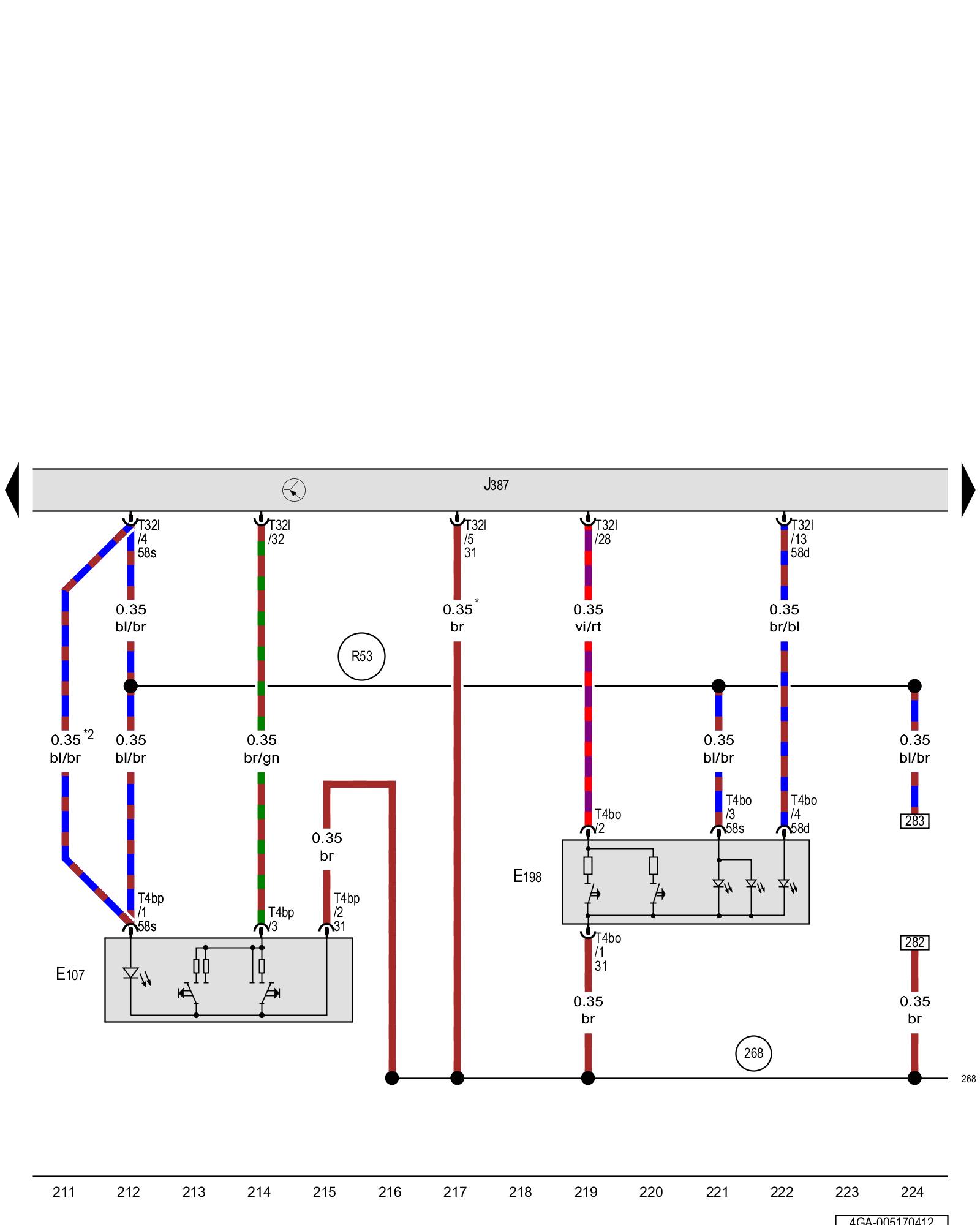

Front passenger door window regulator switch, Front passenger interior locking switch, Front passenger door control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E107 - Front passenger door window regulator switch

E198 - Front passenger interior locking switch

J387 - Front passenger door control module Locations

T4bo - 4-pin connector

T4bp - 4-pin connector

T32l - 32-pin connector Front Passenger's Door Control Module -J387-

(268) - Ground connection 2 (in front passenger door wiring harness)

(R53) - Connection (58s) (in front passenger door wiring harness)

* - Switch ground output

*2 - Driver and front passenger memory seats
