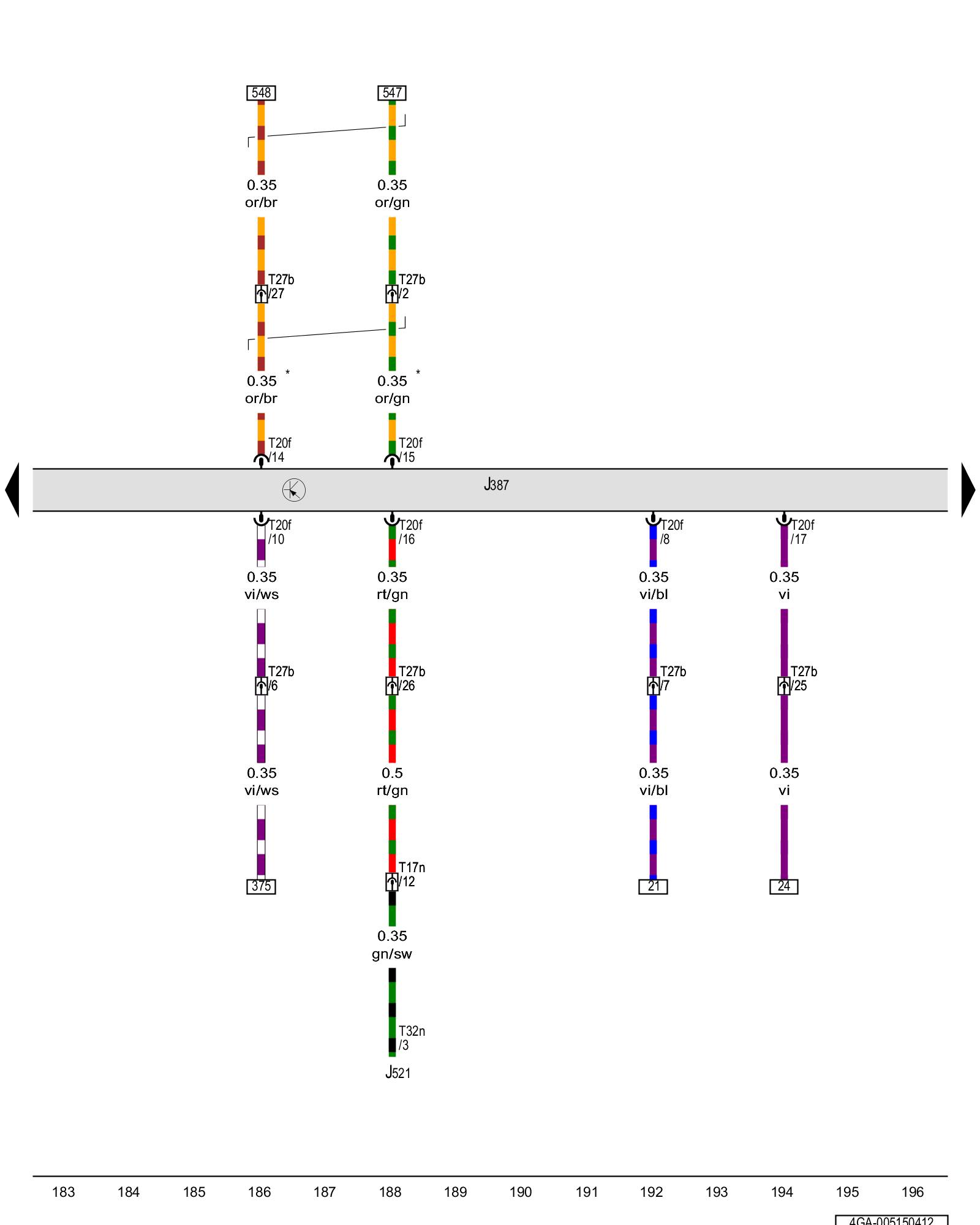

Diagram 5/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Front passenger door control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J387 - Front passenger door control module Locations

J521 - Front passenger memory seat control module

T17n - 17-pin connector, in the coupling point for the right front seat Locations

T20f - 20-pin connector Front Passenger's Door Control Module -J387-

T27b - 27-pin connector, in the right D-pillar

T32n - 32-pin connector

* - Data bus wire (CAN bus)
