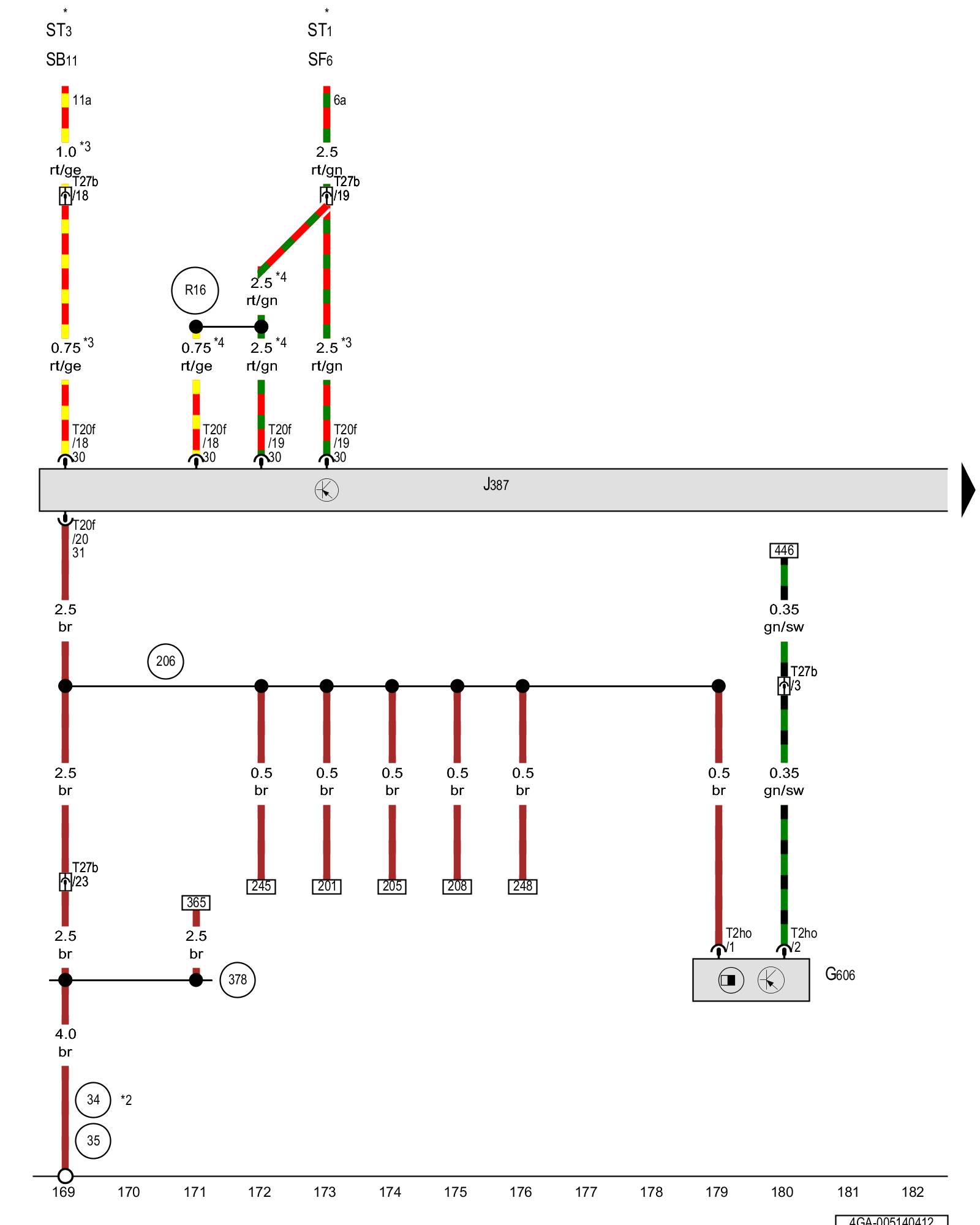

Diagram 5/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Right front exterior door handle touch sensor, Front passenger door control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G606 - Right front exterior door handle touch sensor Keyless Entry System - front

J387 - Front passenger door control module Locations

ST1 - Fuse panel 1

ST3 - Fuse panel 3

SF6 - Fuse 6 (on fuse panel F) Overview Of Fuses

SB11 - Fuse 11 (on fuse panel B) Overview Of Fuses

T2ho - Double connector

T20f - 20-pin connector Front Passenger's Door Control Module -J387-

T27b - 27-pin connector, in the right D-pillar

(34) - Ground connection under driver seat [1][2]Ground Locations

(35) - Ground connection under front passenger seat [1][2]Ground Locations

(206) - Ground connection (in front passenger door wiring harness)

(378) - Ground connection 13 (in main wiring harness)

(R16) - Positive connection 1 (30) (in front passenger door wiring harness)

* - Refer to applicable wiring diagram for fuse positions

*2 - Only for right-hand drive vehicles

*3 - Through May 2011

*4 - from June 2011
