MMI Radio Plus (RMC) System Component Overview
MMI Radio Plus (RMC) System Component Overview

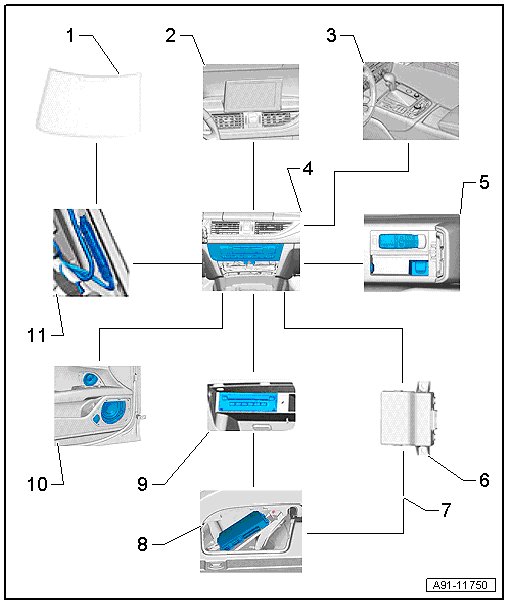

Radio RMC Plus (8DP)
1 Antenna (R11) / Radio Antenna 2 (R93) in the rear window
2 Front Information Display Control Head (J685) in center of the instrument panel
3 Multimedia System Control Head (E380) in the front of the center console
4 Information Electronics Control Module 1 (J794) inside the instrument panel
5 External Audio Source Connection (R199) in the center console storage compartment
6 Data Bus On Board Diagnostic Interface (J533) under the rear seat bench
7 MOST Bus
8 Digital Sound System Control Module (J525) (BOSE Sound System) behind the left luggage compartment trim panel
9 CD Changer (R41) inside the glove compartment
10 Standard/BOSE Sound Systems
11 Antenna Amplifier Inside The Rear Lid
