Sound System Control Module Overview

Component Locations: Radio / Navigation Systems

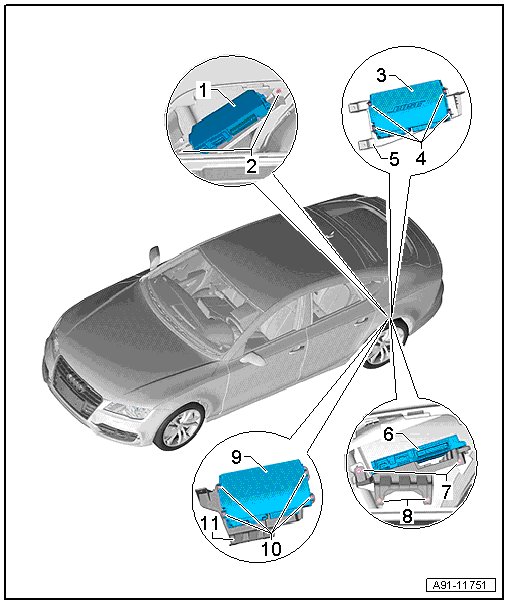

Sound System Control Module Overview


BOSE is shown in the overview, Bang & Olufsen is
similar





1 - Digital sound system control module -J525-
• Located behind the luggage compartment trim (left-side).

9 - Digital sound system control module 2 -J787-
• Located behind the luggage compartment trim (left-side) beneath the digital sound package control unit -J525-.
