CD Changer: Service and Repair

CD Changer (R41)

Special tools, testers and auxiliary items required

• Radio Removal Tool (T10057)

• Fiber Optic Pliers Repair Set (VAS 6223)

• Protective Cap For Cable Connector (VAS 6223/9)

The CD changer is inside the glove compartment.

- If control module is replaced, select "Replacement" function for appropriate control module in "Guided Fault-Finding" routine.

Use the Vehicle Diagnostic Tester.

- Turn off the ignition and all electrical consumers and remove the ignition key.

Removal

- Open glove compartment.

- If there is still a CD in the CD changer, take it out.

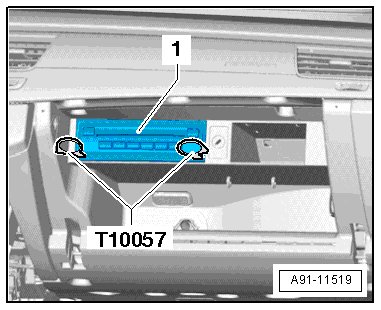

- Insert the two clips on the (T10057) in the release slits on the CD changer - 1 - until they engage. Points on the grip eyelets of tool face outward.






- Remove CD Changer from mounting frame.

- Disconnect all connectors from the CD Changer.

- Attach the (VAS 6223/9) - 1 - onto the MOST bus connectors - 2 -.






- Remove (T10057) , push locking tabs on CD Changer to do so.

Installation

- Connect all harness connectors.

- Slide CD Changer into mounting frame until it engages.

Component location overview for the tightening specification and installation instructions, refer to => [ MMI Radio Plus (RMC) Component Location Overview ] MMI Radio Plus (RMC) Component Location Overview.
