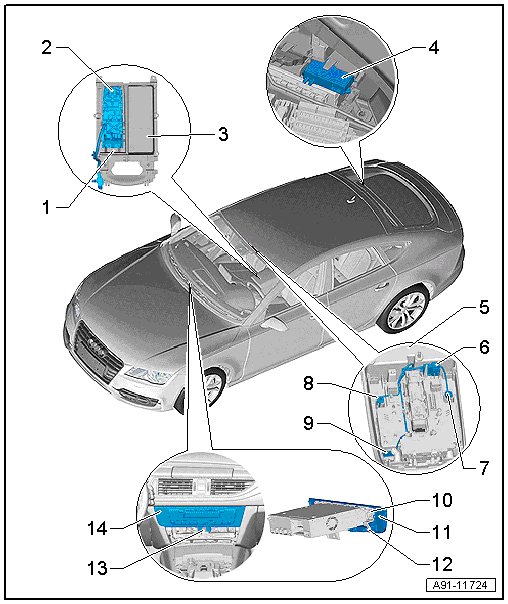

Telephone System Overview

Telephone System Overview






1 Telephone Baseplate (R126)

• Removing and installing, refer to => [ Telephone Baseplate (R126) ] Telephone Baseplate (R126).

2 Screw (Quantity 5)

• 1 Nm

3 Storage Compartment In The Center Armrest

• Removing and installing.

4 Cellular Telephone Amplifier (R86)

• Connector assignment, refer to => [ Cell Phone Amplifier (R86) Connectors ] Cell Phone Amplifier (R86) Connectors.

• Removing and installing, refer to => [ Cellular Telephone Amplifier (R86) ] Cellular Telephone Amplifier (R86).

5 Front Interior Lamp (W1)

• Microphone unit in front roof module (R164)

• Overview, refer to => [ Microphone Unit In Front Roof Module (R164) ] Microphone Unit In Front Roof Module (R164).

6 Connector T6e

7 Left Front Microphone (R140)

• Removing and installing, refer to => [ Microphone Unit in Front Roof Module (R164) ] Microphone Unit In Front Roof Module (R164)

8 Right Front Microphone (R141)

• Removing and installing, refer to => [ Microphone Unit in Front Roof Module (R164) ] Microphone Unit In Front Roof Module (R164).

9 Inside Microphone (R74)

• Removing and installing, refer to => [ Microphone Unit in Front Roof Module (R164) ] Microphone Unit In Front Roof Module (R164).

10 Information Electronics Control Module 1 (J794)

• Cellular telephone preparation connector assignment (RMC). Refer to => [ Cellular Telephone Preparation Connectors (RMC) 9ZF ] Cellular Telephone Preparation Connectors (RMC) 9ZF.

• Pin assignment, cell phone preparation (MMI), refer to => [ Cellular Telephone Preparation Connectors (MMI) 9ZF ] Cellular Telephone Preparation Connectors (MMI) 9ZF

• Bluetooth car telephone, connector assignment, refer to => [ Bluetooth Car Phone Connector, Information Electronics Control Module 1 (J794), 9ZW ] Bluetooth Car Phone Connector, Information Electronics Control Module 1 (J794), 9ZW.

• Bluetooth hands-free calling connector assignment (RMC), refer to => [ Bluetooth Hand-Free Calling Connector Assignment (RMC) 9ZX ] Bluetooth Hand-Free Calling Connector Assignment (RMC) 9ZX.

• MMI Bluetooth Hands-Free Setup Connectors, refer to => [ MMI Bluetooth Hands-Free Setup Connectors 9ZX ] MMI Bluetooth Hands-Free Setup Connectors 9ZX.

• Removing and installing, refer to => [ Information Electronics Control Module 1 (J794) ] Information Electronics Control Module 1 (J794).

11 Divider

12 Screw (Quantity 4)

• 1 Nm

13 Screw

• 3 Nm

14 Information Electronics Control Module 1 (J794)
