Anti-Theft Alarm System Sensor (G578)

Anti-Theft Alarm System Sensor (G578)

Removing






- Remove the front interior lamp/reading lamp: without an eyeglass compartment, refer to => [ Interior Lamp/Reading Lamp, Without Eyeglass Compartment ] Interior Lamp/Reading Lamp, Without Eyeglass Compartment, with an eyeglass compartment, refer to => [ Interior Lamp/Reading Lamp, With Eyeglass Compartment ] Interior Lamp/Reading Lamp, With Eyeglass Compartment.

- Remove the single sensor - 1 - from the mount - 2 -.

- Release the tabs - arrows - and remove the mount - 4 - and anti-theft alarm system sensor from the interior lamp/reading lamp - 3 -.

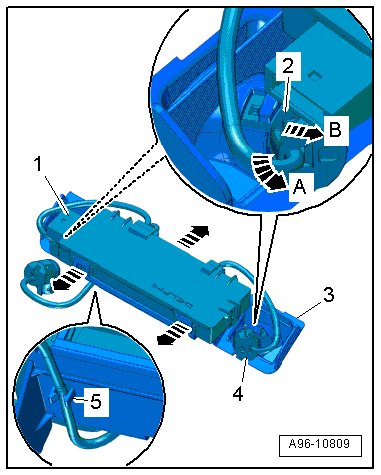

- Free up the electrical wire - 5 -.






- Press the tabs to the side - arrows - and remove the anti-theft alarm system sensor - 1 - from the mount - 3 -.

- Turn the single sensors - 2 and 4 - counter-clockwise all the way - arrow A - and remove them from the mount - arrow B -.

- Remove the anti-theft alarm system sensor.

Installing

Install in reverse order of removal. Note the following:

- Install the front interior lamp/reading lamp: without an eyeglass compartment, refer to => [ Interior Lamp/Reading Lamp, Without Eyeglass Compartment ] Interior Lamp/Reading Lamp, Without Eyeglass Compartment, with an eyeglass compartment, refer to => [ Interior Lamp/Reading Lamp, With Eyeglass Compartment ] Interior Lamp/Reading Lamp, With Eyeglass Compartment.
